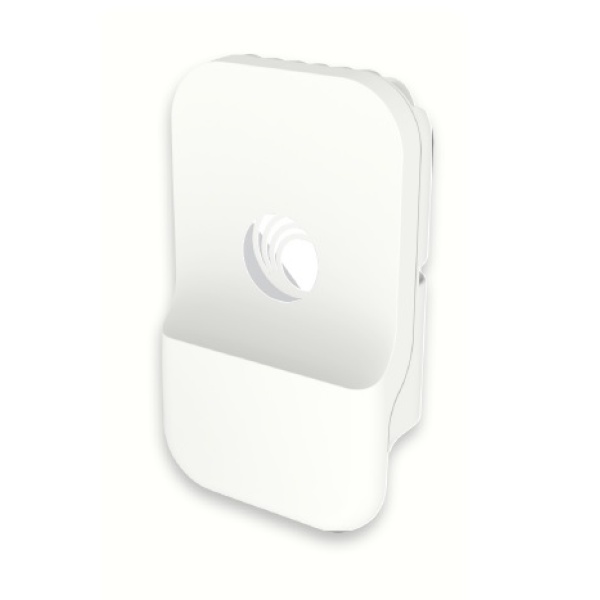

60GHz V1000 Mid-Gain Client Node with Integrated 80 Degree Sector Antenna, 802.11AY


Part #: GNS-V1000

60GHz V1000 Mid-Gain Client Node

Availability: In Stock
MFG Part #: C600500C001A


60GHz V1000 Mid-Gain Client Node with Integrated 80 degree Sector Antenna, 802.11AY technology with Terragraph certification, PoE, Mount, US power cord

 60 GHz cnWave V1000

  • Supports 57 to 66 GHz
  • Up to 2 Gbps (1 Gbps UL and 1 Gbps DL)
  • Auto-beamforming, 80º horizontal and 40º vertical
  • TDMA channel access and TDD Network Synchronization
  • 802.11ay standard technology with Terragraph certification
  • Supports PTP Mode with another V1000 or Client Mode to the V5000


Cambium Networks’ 60 GHz cnWave solution provides easy, fast and cost-effective wireless gigabit connectivity for edge access and/or high-capacity backhaul for edge access solutions at a significantly lower TCO than fiber infrastructure. Service providers and enterprises now have access to gigabit for business and residential connectivity, backhaul for Wi-Fi access or LTE/5G small cell. Certified for Facebook Terragraph, cnWave mesh solutions are highly efficient at handling high-density deployments in cities and suburban areas.

V1000 is featured with wide-range, 80º beamforming for easy installation. Powered by 802.3af PoE, V1000 supports up to 2 Gbps with 1 Gbps in the uplink direction and 1 Gbps in the downlink direction.


This 802.11ax access point operates with either Cambium Networks’ XMS or cnMaestroTM management system. Choose the management system that best fits your business and use the latest technology from Cambium Networks.  GNS Wirelss can assist.  Contact us today.

POE is included.

Cambium cnWave V1000 is a 60 GHz point-to-multipoint (PMP) and point-to-point (PTP) wireless solution that provides gigabit capacity and low-latency performance for outdoor wireless broadband applications. Here are the specifications of the Cambium cnWave V1000:

  1. Frequency band: 57-71 GHz

  2. Channel bandwidth: 2.16 GHz

  3. Modulation: 256 QAM

  4. Maximum data rate: Up to 1.8 Gbps

  5. Range: Up to 1 km

  6. Antenna gain: 27 dBi

  7. Radio interface: 2×2 MIMO

  8. Ethernet interface: 1x 10/100/1000 Base-T Ethernet (RJ45)

  9. Power consumption: 25W (typical)

  10. Power supply: PoE+ (802.3at)

  11. Operating temperature: -40°C to +60°C

  12. Dimensions (W x H x D): 195 x 195 x 90 mm

  13. Weight: 1.7 kg

The Cambium cnWave V1000 is designed for outdoor wireless broadband applications that require high-speed connectivity with low latency, such as video surveillance, last-mile access, and wireless backhaul. It provides secure and interference-free connectivity by operating in the 60 GHz millimeter wave frequency band. The cnWave V1000 is easy to install and can be managed through the cloud-based Cambium cnMaestro platform.

Additional information

Weight 15.0000 lbs

In Stock

MFG Part #



C600500C001A Datasheet Size: (737.33 KB)
