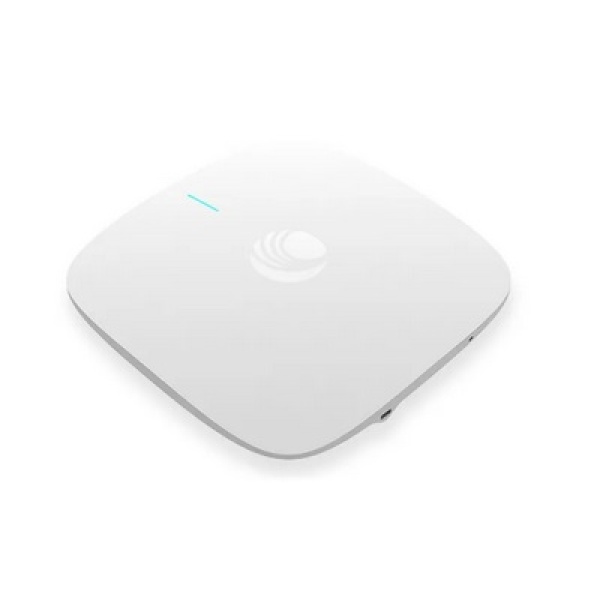

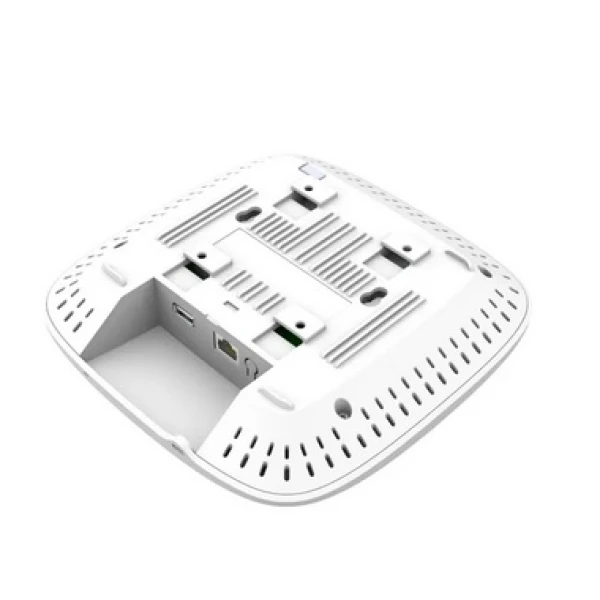

XV2 802.11AX Wi-Fi 6 Dual Radio Indoor Access Point


Part #: GNS-XV2-2X00A

XV2, 802.11AX Wi-Fi 6 Dual Radio Indoor Access Point

Availability: In Stock
MFG Part #: XV2-2X


802.11AX Dual Radio Wi-Fi 6 Indoor Access Point. 802.11ax 2×2 5GHz and 2.4GHz WLAN Access Point with Integrated Omni Antenna. FCC version


Fully Backward compatible 802.11ax access point.  Prepare your wireless network for support of higher growth and greater density of devices.


  • High-density Wi-Fi Support
  • Outdoor IP67 rated
  • 2 Gbps aggregate data rate
  • Dedicated scanning sensor, dual band
  • Application policy control
  • -40 to 65 Degree C Support
  • WPA3, WPA2 (CCMP, AES, 802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK (TKIP), Open
  • 5dBi @ 2.4 GHz | 9dBi @ 5 GHz

With 802.11ax, superior Wi-Fi will finally be provided at your Campground or RV Park!   Contact GNS Wireless for more information.  (516) 214-0321



This 802.11ax Indoor access point is a dual radio Wi-Fi 6 access point (AP) designed for indoor deployments such as Motel Wi-Fi hotspots, outdoor enterprise networks, hospitality, and education markets.   GNS Wireless specifically installs and supports this access point for large Marinas, expansive Yacht Clubs, Campground and RV Parks with 100+ sites/slips.  Prepare your wireless network for the next leg of superior Wi-Fi.  Compatible with Starlink internet.

For example, we will use these indoor Wi-Fi 6 access points in the office, campground store, or bathhouse for Wi-Fi coverage in or around the building.  Then, we will deploy any number of the outdoor Wi-Fi 6 access points, XV2-2T for superior Wi-Fi coverage to the campers, or boaters in that area.  When multiple access points are needed to cover a large Campground, connect the remote access points on poles, using a point to point wireless bridge, or gigabit backhaul such as the GNS-5460-HD.

The new IEEE 802.11ax standard delivers higher network speeds and enables more connected devices at higher packet quality. In outdoor deployments, the IEEE 802.11ax standard delivers greater range by boosting the RF frame preamble by 3dB and improved signal quality with increased guard interval vs previous Wi-Fi technology. The XV2 is fully backward compatible with existing 2.4 GHz Wi-Fi technology and prepares a network for higher growth and greater density of Wi-Fi connected devices.


This 802.11ax access point operates with either Cambium Networks’ XMS or cnMaestroTM management system. Choose the management system that best fits your business and use the latest technology from Cambium Networks.  This flexibility allows the XV2-2 to deliver application policy controls, location services, and BYOD security segmentation when managed by the XMS management system, or support the wireless fabric architecture spanning outdoor broadband, Ethernet switching, and enterprise Wi-Fi when managed by cnMaestro.  GNS Wirelss can assist.  Contact us today.

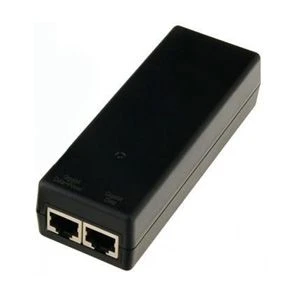

56V, N000000L142A Single Port POE is NOT included.

Additional information

Weight 15.0000 lbs

In Stock

MFG Part #



C600500C001A Datasheet Size: (737.33 KB)
