Description

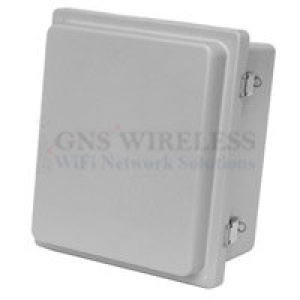

18x16x8 – 120 VAC NEMA Enclosure with Cooling Fan

Protect wireless, networking, power, and control equipment with a rugged enclosure built for demanding indoor and outdoor installations.

This 18 x 16 x 8 inch NEMA enclosure is constructed from molded, UV-stable fiberglass reinforced polyester for reliable performance in wet, hot, and corrosive environments. The non-metallic design will not rust, making it an excellent choice for outdoor wireless equipment, industrial controls, remote network installations, and other exposed applications.

The fully gasketed raised lid helps keep out water, dust, and debris, while stainless steel quick-release latches provide secure access and long-term corrosion resistance. Integrated padlock hasps allow the enclosure to be locked when additional security is required.

An integral mounting flange simplifies wall or pole mounting without requiring separate external mounting hardware. The clean machine-tool gray finish, RAL 7035, provides a professional appearance in virtually any installation.

Key Features

• UL® Listed molded fiberglass reinforced polyester enclosure
• NEMA Type 4, 4X and IP66 rated
• Suitable for indoor and outdoor installations
• UV-stable, corrosion-resistant construction
• Fully gasketed raised lid
• Stainless steel quick-release latches
• Integrated padlock hasps
• Integral external mounting flange
• Clean RAL 7035 machine-tool gray finish
• Exterior dimensions: 18 x 16 x 8 inches

Powered Mounting Plate

The optional Gen 2 powered mounting plate creates a clean, organized platform for mounting and powering equipment inside the enclosure.

It includes duplex 120 VAC outlets for radios, PoE injectors, switches, power supplies, and other devices. A DIN-rail-mounted terminal block provides a safer and more convenient connection point for incoming power, while the integrated grounding lug adds another level of installation protection.

The slotted mounting pattern supports a wide variety of equipment sizes and configurations, allowing installers to securely position components without being limited to a fixed hole pattern.

Powered Plate Features

• Duplex 120 VAC power outlets
• DIN-rail-mounted terminal block
• Integrated grounding lug
• Universal slotted equipment mounting pattern
• Cleaner and more organized equipment installation
• Ideal for wireless radios, PoE injectors, switches, and power supplies

Thermostat-Controlled Cooling Fan

Electronic equipment can generate significant heat inside a sealed outdoor enclosure. The optional filtered fan system helps lower internal temperatures so installed equipment can operate more reliably.

The quiet, high-airflow 12-watt fan is controlled automatically by an internal thermostat. It turns on when the enclosure temperature reaches approximately 100°F / 38°C and turns off once the temperature falls to approximately 70°F / 21°C.

This cooling option includes all features of the powered mounting plate and is especially useful for installations exposed to direct sunlight, high ambient temperatures, or equipment with greater heat output.

Cooling System Features

• 12-watt high-airflow fan
• Low-noise operation
• Replaceable filtered air intake
• Automatic thermostat control
• Activates at approximately 100°F / 38°C
• Deactivates at approximately 70°F / 21°C
• Helps extend equipment life and reduce heat-related failures

Built for Outdoor Wireless and Network Installations

The 18 x 16 x 8 enclosure provides ample room for many common outdoor network components while remaining compact enough for pole, wall, or equipment-pad installations.

Common applications include:

• Outdoor wireless access points
• Point-to-point wireless bridge equipment
• PoE injectors and power supplies
• Ethernet switches
• Cellular and remote monitoring equipment
• Industrial controls
• Camera and security systems
• Solar and remote power installations

For outdoor wireless systems that require dependable weather protection, organized equipment mounting, available AC power, and optional cooling, this enclosure provides a durable and professional solution.
