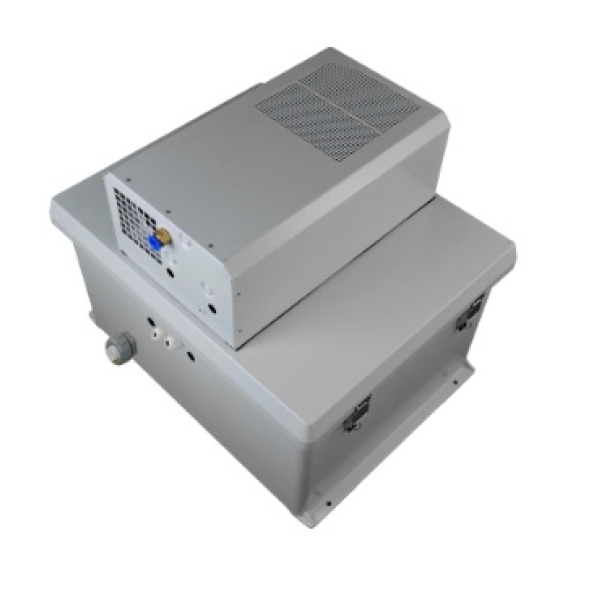

20x16x11 – 120VAC NEMA Weatherproof Enclosure with AC


Part #: GNS-7041-201AC

20x16x11 – 120 VAC NEMA Weatherproof Enclosure, 300W AC

Availability: In Stock


20x16x11 120VAC NEMA Weatherproof Enclosure with AC.












Built-in 300W (1,020BTU) DC powered A/C system




The box is a rugged weatherproof enclosure that is ideal for both indoor and outdoor applications.  Constructed from molded fiberglass reinforced polyester, it is well suited for high temperature or corrosive environments. The mounting flange allows it to be wall mounted as well as on a flat surface. The raised lid features a stainless steel continuous hinge and stainless steel quick release latches with padlock hasps. The raised lid is fully gasketed. The enclosure material is UV stabilized and comes in machine tool gray.
The internal plate features four standard surge protected 120 VAC outlets and a terminal strip to supply power to internal equipment.


To help ensure trouble-free operation of electronic equipment, proper operating temperatures inside an enclosure needs to be maintained. The cover includes dual built in vents for proper ventalation, internal temperatures can be better maintained. The NEMA Weatherproof Enclosure Box with Vents and 120V Power is ideal in hot environments.



  • UL® Listed Molded Fiberglass Reinforced Polyester (FRP) industrial Enclosure
  • Stainless steel quick release latches with padlock hasps
  • NEMA Type 4, 4X / IP66 rated with Vents
  • Fully gasketed raised lid & integral mounting flange
  • Dimensions (20x16x11 in)
  • AC Current, Max: 4
  • AC Temperature On:  86 (30) | Adj. 60 (18) – 122 (50)
  • 41 lbs
  • UL 94-5V Flame Rating



Additional information

Weight 100.0000 lbs
