Mimosa B5-Lite | 5 GHz, 750+ Mbps capable PtP 802.11AC – COMPLETE Link


Part #: GNS-B5L

5GHz – 750+ Mbps PTP Backhaul Radio, 20dBi Antenna

Availability: Out of Stock
MFG Part #: B5-Lite

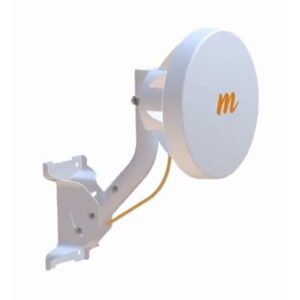

Mimosa B5-Lite 5GHz – 750+ Mbps PTP Backhaul Radio, 20dBi Integrated Antenna.


This 802.11AC wireless backhaul radio is a complete link in a box. Introducing the Mimosa B5-Lite, your next low-cost, high throughput backhaul radio. Using Mimosa’s flexible TDMA protocol and 802.11ac technology, this 2×2:2 radio is a great option for locations that do not require collocation. Capable of 750+ Mbps throughput, this radio can serve less bandwidth hungry areas easily. Offering the same low 2 ms latency as the B5 and a 20 dBi antenna – the B5-Lite strips away a few advanced B5 features to provide you with an alternative low-cost solution. The Mimosa B5-Lite point to point wireless ethernet bridge is a fantastic addition to any network.

These lightweight antennas create a point to point wireless Ethernet bridge. These wireless backhaul radios have a radio throughput of up to 750Mbps, using a small, lightweight, 20dBi integrated antenna. Only a single Cat5e Ethernet cable is required for both power and data over the same cable.

Solar Power
These wireless bridge radios deliver up to 750Mbps using a maximum of 20W power consumption, per radio.  These means that providing solar power is fast and simple, and no large solar panels are required.

Channel Width
With channel width up to 80MHz, this wireless bridge can support VoIP, Video, and large amounts of data transfer, with minimum lag, and zero latency.  Up to a 2 mile point to point internet distance at maximum throughput.  Channel width automatically adjusts depending on the interference of your wireless point to point link. This means that in poor conditions, your wireless backhaul radio will automatically adapt to the best channel, channel width, and transmit power to keep your link running at optimum speed.

Stream Power Peaking
Multi-stream MIMO radios normally settle on the lowest MCS rate across all the streams, severely degrading performance. Mimosa’s wireless backhaul radios constantly advise the remote-side radio of individual stream receive levels, increasing those signal levels to meet the highest common attainable MCS rate.

Predictive AGC
When there’s a consistent signal from a single client, Mimosa’s Automatic Gain Control narrows the gain window of the receive signal amplitude for the next incoming packets to accelerate packet signal level detection.  This further reduces latency, and maximizes link quality.  This wireless bridge works very well in high interference envirnments.

Precision Receive Activation
A technique by which the receiver is precision-activated only when packets are expected to arrive over the link. Thus reducing the potential interference typically seen if a receiver prematurely begins decoding.  With this technology your wireless bridge will have less dropped packets, which results in faster throughput, less jitter, and a higher quality point to point wireless connection.

Additional information

Weight 40.0000 lbs

Out of Stock

MFG Part #



There are no reviews yet

Be the first to review “Mimosa B5-Lite | 5 GHz, 750+ Mbps capable PtP 802.11AC – COMPLETE Link”
