Description

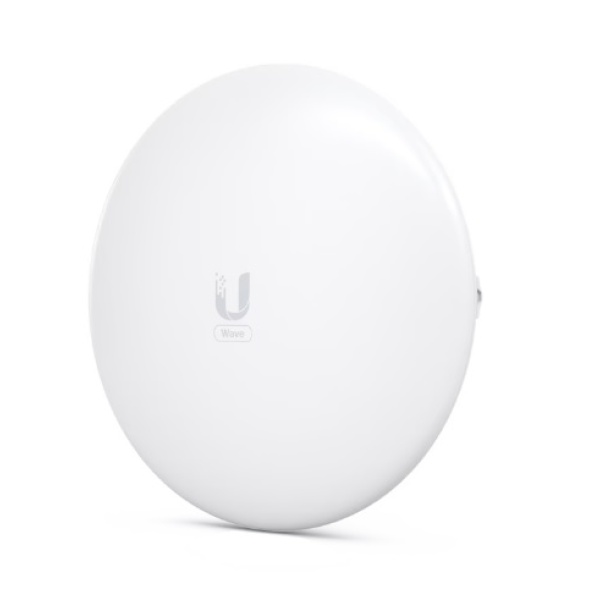

60 GHz Client Radio for PTMP Mesh Backhaul, 1 Gbps
This 60 GHz client antenna will connect to your 60 GHz wireless access point for ease of mesh installation at your RV Park or Campground mesh network. This client antenna must be within 30 degrees of your broadcast location access point, and have clear, unobstructed line of sight.
| Dimensions | Ø256.5 x 113.5 mm (Ø10.1 x 4.5″) |
| Weight | Without mount: 932 g (2.1 lb) With mount: 1.2 kg (2.6 lb) |
| Enclosure materials | Aluminum alloy, UV stabilized plastic |
| Mount materials | Aluminum alloy, UV stabilized plastic |
| Pole mount diameter | 25 to 63.5 mm (1 to 2.5″) on pipe outer diameter |
| Wind loading | 127 N at 200 km/h (28.6 lbf at 125 mph) |
| Weatherproofing | IPX6 |
| Hardware | |
|---|---|
| Processor | Dual ARM® Cortex®-A53 cores at 1 GHz |
| Memory | DDR3L 512 MB |
| Networking interface | (1) GbE RJ45 port |
| Max. power consumption | 18W |
| Power method | 48V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4,5+; 7, 😎 or 2-pairs (4, 5+; 7, 😎 24V DC passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 😎 |
| Power supply | 48V DC, 0.65A gigabit PoE adapter (included) Can be powered by a UISP Router or UISP Switch |
| GPS | Yes |
| Button | Factory reset |
| LEDs | Power, Ethernet, GPS, link |
| Operating temperature | -40 to 60° C (-40 to 140° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | FCC, IC, CE |
| Software | |
| OS | airOS® |
| Operating mode | PtMP station |
| Features | Wave AI, discovery protocol |
| Services | UISP, ping watchdog, NTP client, SNMP |
| Tools | Antenna alignment, discovery utility, ping, trace route, speed test |
| Network | Bridge/Router mode |
| Management application | UISP: Version 1.4.5 and later |
| System | |
| Total throughput | 2 Gbps (1 Gbps duplex) |
| Maximum range | 5+ km |
| Encryption | WPA2-PSK (AES) |
| RF | |
| Operating frequency* | 57 to 71 GHz *Depends on regulatory region. |
| Channel bandwidth | 2160, 1080 MHz |
| Operating channels* | 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz *Depends on regulatory region. |
| Modulation | 16QAM, QPSK |
| Antenna gain | 41 dBi |
| Azimuth and elevation beamwidth | 3 dB: 1° 6 dB: 1.4° |
| Back-Up RF | |
| WiFi standard | 802.11ax (WiFi 6) |
| Operating frequency* US/CA Worldwide | U-NII-1 5150 – 5250 MHz U-NII-2A 5250 – 5350 MHz U-NII-2C 5470 – 5725 MHz U-NII-3 5725 – 5850 MHz 5150 – 5875 MHz |
| Channel bandwidth | 20, 40, 80 MHz |
| Modulation | BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6) |
| Antenna gain | 19 dBi |
| Polarization | Dual-linear |
| Cross-pol isolation | 20 dB |
| Beamwidth | Azimuth: 3 dB BW 14 to 17° Elevation: 3 dB BW 14 to 17° |
| Azimuth and elevation beamwidth | 3 dB: 14 to 17° |
| LEDs | |
| Power | Flashing white: bootup in progress White: not connected to UISP application Blue: connected to UISP application Flashing blue: locate in progress Blue/white: firmware upgrade in progress |
| Ethernet | Flashing blue: Ethernet traffic detected |
| GPS | Blue: receiving at least (4) GPS satellite signal |
| Links | White: 5GHz link Blue: 60GHz link |
