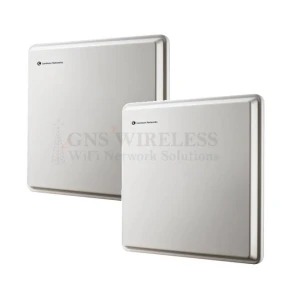

60GHz Long Range Ethernet Bridge, Integrated Antennas, 3.6 Gbps, PoE, Mount

$2,749.00

Part #: GNS-5462

Availability: In Stock
Categories: ,
Tags: ,

Description

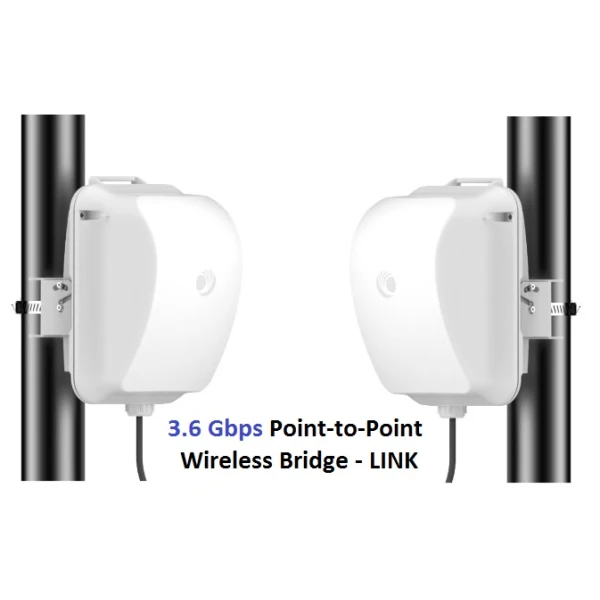

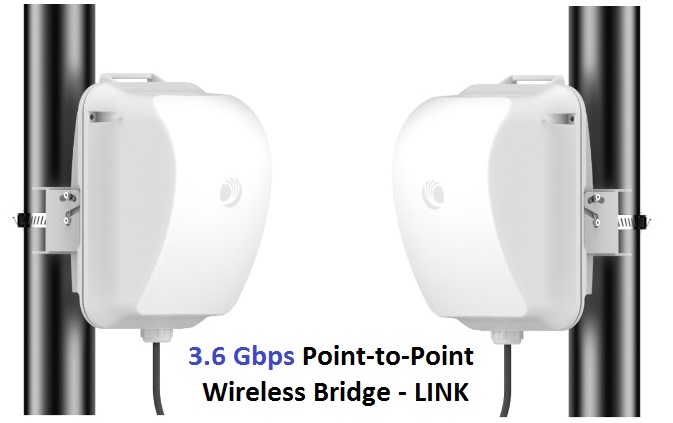

60 GHz High Throughput – Point-to-Point LINK – 3.6 Gbps

This wireless bridge is a complete link, operating at 60 GHz, with wireless technology developed by Cambium Networks that offers high-speed connectivity with low latency and interference. The 802.11ay radios are a specific model of the cnWave platform and offers the following specifications:

  1. Frequency band: 57-71 GHz

  2. Channel bandwidth: 2.16 GHz

  3. Modulation: 256 QAM

  4. Up to 3.6 Gbps (1.8 Gbps DL and 1.8 Gbps UL) PTP MODE

  5. Future channel bonding feature will increase capacity to up to 5.2 Gbps

  6. Range: Up to 1.5 km

  7. Antenna gain: 30 dBi

  8. Radio interface: 2×2 MIMO

  9. Ethernet interface: 1x 10/100/1000 Base-T Ethernet (RJ45)

  10. Power consumption: 25W (typical)

  11. Power supply: PoE+ (802.3at)

  12. Operating temperature: -40°C to +60°C

  13. Dimensions (W x H x D): 195 x 195 x 90 mm

  14. Weight: 1.7 kg

These specifications make the cnWave GNS-5462 link ideal for high-bandwidth applications such as video streaming, wireless backhaul, and high-speed data transfer over short to medium distances. The use of the 60 GHz band also means that interference from other wireless networks is minimized, resulting in reliable and secure connectivity.  Clear, un-obstructed line of sight is required.  Although 60 GHz is superior for point to point backhauls, and high throughput connectivity, LOS is highly recommended.

What’s included in this  Wireless Bridge (complete link):

  • 2x Outdoor 60GHz 802.11A Bridge Antennas
  • 2x Gigabit Power over Ethernet Injector US-POE
  • 2x 50ft. Shielded cat6e Ethernet Cable

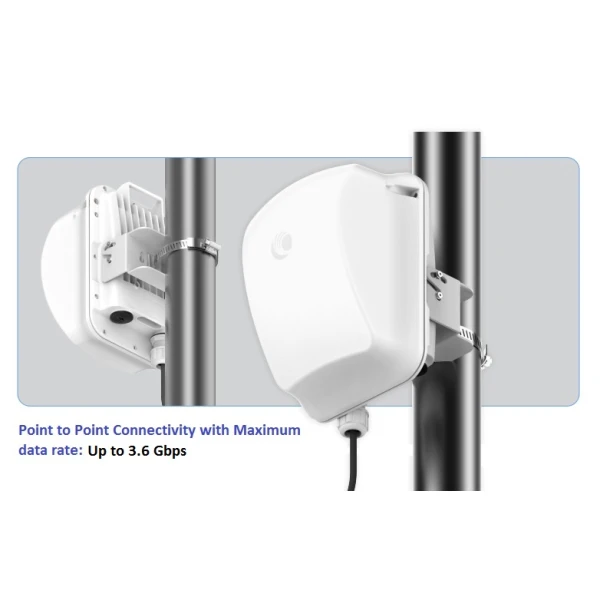

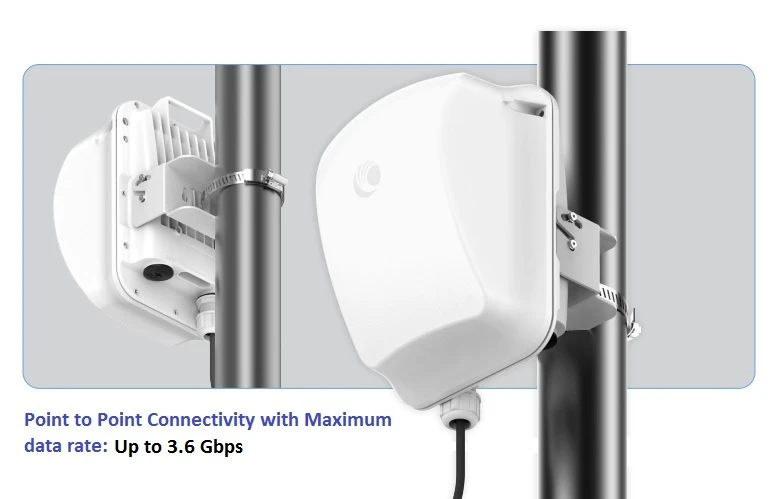

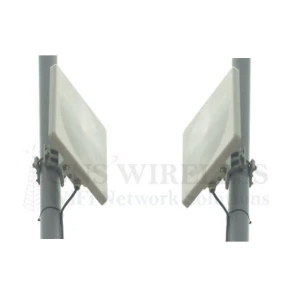

  • 2x Pole Mount Hardware for 1-2″ OD mast
  • 2x Inline Surge Protectors
  • Pre-Configured for Plug-N-Play
  • US Based Technical Support
  • Free Cloud Configuration
The radios include a secondary, gigabit POE output, for powering access points, security cameras, or other PTP backhauls.

Maximum Range:

This building to building high speed Ethernet bridge is pre-configured and paired to each other, for “out of the box” installation and operation.  Operating at 60 GHz gives you an interference free wireless communication between any 2 buildings, but range is not like the 5 GHz counterparts.  Manufacturer specs state 1.5 KM, and we would recommend no more than 1 KM as a more realistic distance estimate.  In some scenarios, even with perfect line of sight, we would not recommend more than 1/2 mile to achieve the very high throughput potential these radios offer.  Clear, unobstructed LOS (Line of Sight) is a must.

No plastic tabs on this model.  Completely waterproof.  High quality construction.  Small Form Factor.  Cloud configuration included.  Get yours today!  Call now


Additional information

Weight 25 lbs

Downloads

Cambium V2000 Datasheet
