300Mbps, 5.7 – 5.8GHz, Full Duplex, Point to Point Wireless Bridge, 23dBi Integrated Panel Antennas, 29dBm TX/RX Power, 128bit encryption, POE/PS included, 1-yr warranty – Pre-Configured – 3 Mile | Complete Link

$1,749.00

Part #: GNS-PTP-5P23

300Mbps, 5.8GHz, 3 Mile, Full Duplex Bridge,  – Complete Link

Brand:
Availability: In Stock
Category:

Description

     Gigabit RF Wireless Bridge

Whats included in this point to point link:

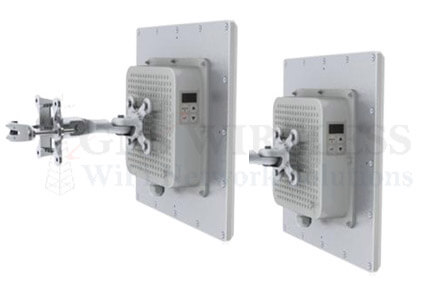

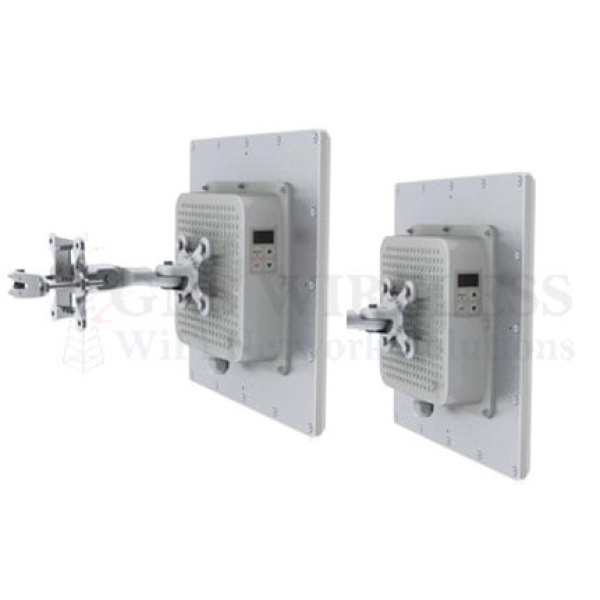

2x Outdoor Radio w/ 23dBi Integrated Antenna
2x 802.3af Power over Ethernet Injector (PoE) |10/100/1000
2x Power Supply

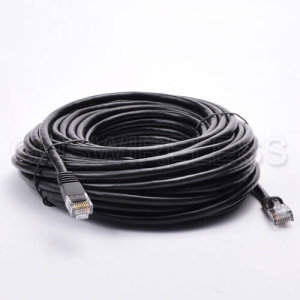

2x 50ft. Shielded cat5e Ethernet Cable
2x Pole Mount Hardware for 1-2.5″ OD mast
1 Year Warranty including Technical Support

Bridge antennas are pre-configured for “out of the box” installation and operation. External Signal LED’s will assist with alignment and troubleshooting procedures. Maximum cat5e cable to be used on each end is 250ft. (Shielded cat5e is recommended).  1 year warranty includes technical support.

FEATURES:
802.11N, 5.8GHz, High Capacity (65K Packets per Second (PPS)), 220Mbps aggregate throughput, AES/WPA2 encryption, low latency, Gigabit POE/PS included, pole mount hardware included, 802.3af support, auto modulation and auto channel, IP67 Enclosure, integrated spectrum analyzer. This is a complete link to include everything needed to connect 2 locations, up to 3 miles apart, clear-unobstructed line of sight is required. Pre-configured for “out of the box” installation. Technical support included. Complete link.

LigoWave unleashes a high capacity, license-free PTP device with the release of the LigoPTP PRO series product line. Making use of ground breaking 2×2 MiMo technology, the LigoPTP 5-23/5-N PRO delivers real aggregate throughput capability of up to 220 Mbps (110 Mbps full-duplex) combined with high packets-per-second performance.

Additionally, the new product is compatible with previous LigoPTP 5-23 MiMo and LigoPTP 5-N MiMo models. This product enables carrier-class point-to-point capability, ideal for dedicated access or backhaul applications (including VOIP or other small packet applications). The Ligo PTP PRO product family couples flexible channel width capability (20 or 40 MHz) and industry-leading proprietary software mechanisms to set the utmost standard in spectral efficiency.

This 5.8Ghz full duplex backhaul features an integrated dual-polarized antenna or two N-type connectors. They are housed in rugged, cast aluminum enclosures. Combining digital signal processing, dual polarization antennas and proprietary W-Jet 2 MiMo protocol these bridges have a high spectral efficiency of 7.5bit/Hz. This link includes an array of advanced software mechanisms that provide optimal point-to-point connectivity for high-throughput, long distance links.

The proprietary PTP mechanisms utilize techniques such as Dynamic Time Division Duplexing (TDD) to dynamically allocate bandwidth in the direction needed, thus increasing link efficiency and greatly decreasing the impact that distance has on throughput of the link.The LigoWave point-to-point products also features selective repeat ARQ technology, an enhanced error-correction software mechanism that optimizes data traffic to provide very high throughput over high-bandwidth, long-range links even in the presence of interference.

The new PRO series products have an extremely powerful integrated 30 dB (1000 mW) radio which allows building solid long-distance links even with an integrated antenna. The output power on highest modulation (MCS 15) is 24 dBi which is hard to find elsewhere in the market today.

Gigabit Ethernet port and 802.3 af standard support makes the PRO series product line even more flexible. Improvements on the SURGE and ESD protection side make this product ideal for mission critical and harsh-weather condition installations. SURGE and ESD protection was designed according to IEC 61000-4-2 (ESD) and IEC 61000-4-5 (SURGE) standards.

Additional information

Weight 30.0000 lbs
Availability

In Stock
