Cambium Networks PMP 450i 5GHz Access Point with 90° Integrated Sector Antenna (C050045A006C)
Deliver Exceptional Wireless Performance in Harsh Environments with the C050045A006C PMP450i.
The Cambium Networks PMP 450i Access Point with integrated 90° sector antenna, is built for high-capacity, high-reliability deployments in demanding outdoor conditions. Featuring advanced interference mitigation, enhanced signal strength, and flexible channel bandwidths, this powerful base station is designed to deliver consistent, low-latency connectivity for your most critical wireless broadband applications.
Whether you’re expanding rural broadband, enhancing industrial communication networks, or deploying wireless internet for municipalities, the PMP 450i offers the performance and durability you can count on.
✅ Key Benefits
-
High Throughput – Delivers up to 300 Mbps per sector in a 40 MHz channel.
-
Scalable Network Growth – Supports up to 238 subscribers per access point.
-
Extended Frequency Range – Operates from 4.9 to 5.9 GHz for flexible deployments.
-

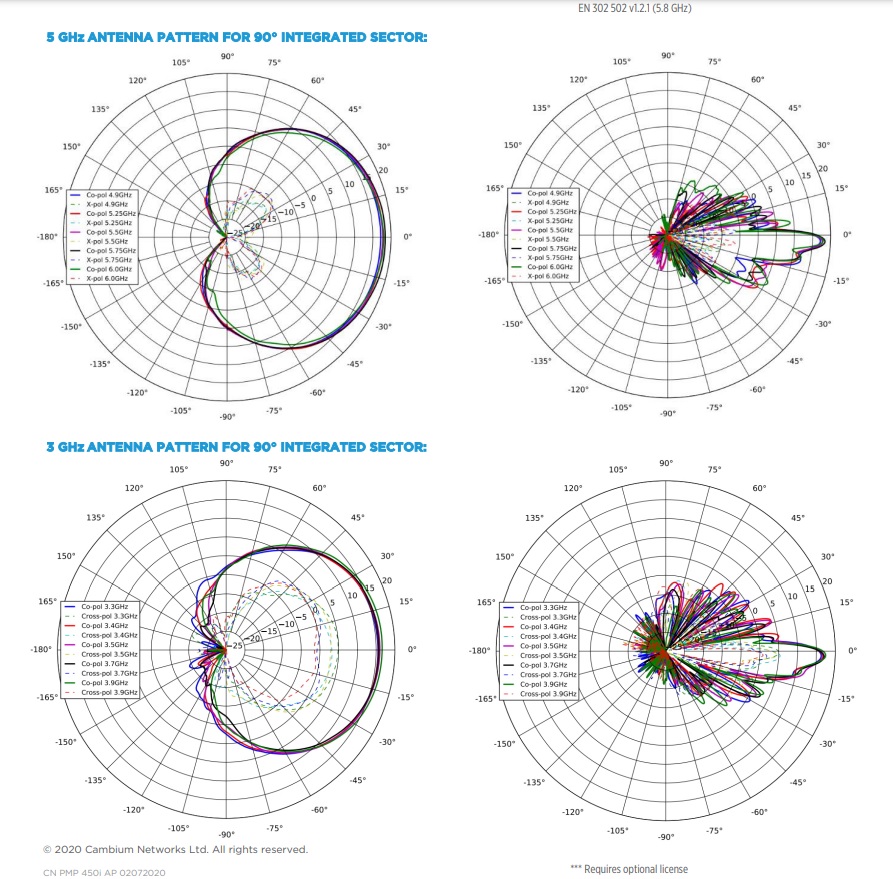

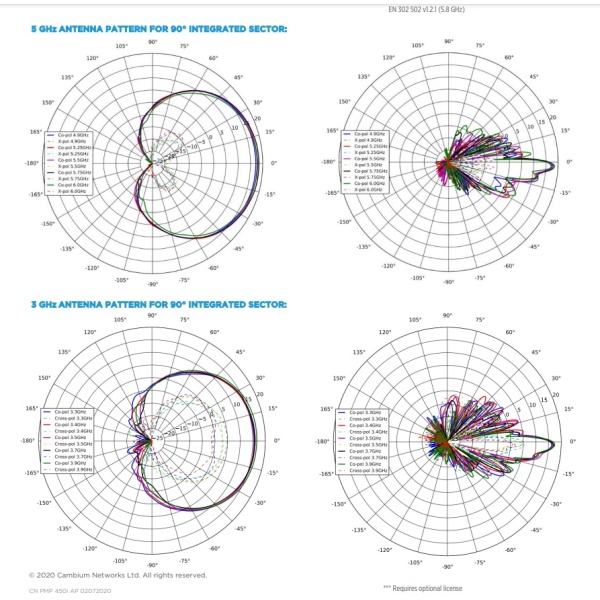

Integrated 90° Sector Antenna – High-gain (17 dBi) with over 35 dB front-to-back ratio for optimized sector coverage.
-
Rugged Design – Industrial-grade IP66/IP67 metal enclosure for extreme weather protection.
-
GPS Sync Capable – Allows for frequency reuse and co-location of multiple APs.
-
Low Latency – Typical latency of just 3–5 ms—ideal for VoIP, video, and real-time apps.
-
Secure Connectivity – AES 128-bit (with optional 256-bit) encryption ensures data security.
📦 Technical Specifications
| Specification | Details |
|---|---|
| Part Number | C050045A006C |
| Frequency Range | 4900–5925 MHz |
| Channel Widths | 5 / 7 / 10 / 15 / 20 / 30 / 40 MHz |
| Max Transmit Power | +28 dBm (combined H+V MIMO) |
| Antenna Gain | 17 dBi ± 1 dBi |
| Sector Coverage | 90° Integrated Antenna |
| Subscriber Capacity | Up to 238 per AP |
| Maximum Throughput | 300 Mbps |
| Latency | 3–5 ms typical |
| Power Consumption | 15W (typical), 18W (max) |
| Power Input | 48–59V DC, supports 802.3at |
| Enclosure Rating | IP66 / IP67 Rated Die-Cast Aluminum |
| Dimensions | 28.8” H x 7.8” W x 5.9” D |
| Weight | Approx. 15.5 lbs |
| Operating Temp | -40°C to +75°C (-40°F to +167°F) |
| Management | cnMaestro™ cloud or on-premise controller |
🧰 Where to Use the PMP 450i Access Point
-
Rural Internet Expansion: Deliver reliable broadband to underserved communities.
-
Utility & Energy Sectors: Deploy secure, rugged communication networks for SCADA and telemetry.
-
Public Safety: Create dependable wireless networks for first responders and municipal systems.
-
Smart Cities: Support cameras, sensors, and public Wi-Fi with a scalable infrastructure.
-
Enterprise Backhaul: Extend connectivity between buildings, campuses, or warehouses.
⚙️ How to Deploy
-
Perform a Site Survey – Confirm clear line-of-sight and minimal RF interference.
-
Mount Securely – Use a mast or tower to position the AP above obstacles.
-
Power & Connect – Use a compatible 802.3at power source or PoE injector.
-
Align Coverage – Aim for optimal 90° sector alignment.
-
Configure via cnMaestro™ – Monitor and manage your network in real-time.
📞 Ready to Upgrade Your Wireless Network?
Buy the Cambium PMP 450i (C050045A006C) today at GNS Wireless—your trusted partner for outdoor wireless networking solutions. We offer expert support, fast shipping, and industry-best pricing.
👉 Click here to order from GNS Wireless or call 877-209-5152 for a custom quote.
