2.4 GHz High Power Wi-Fi Equipment Package for RV Parks and Campgrounds.

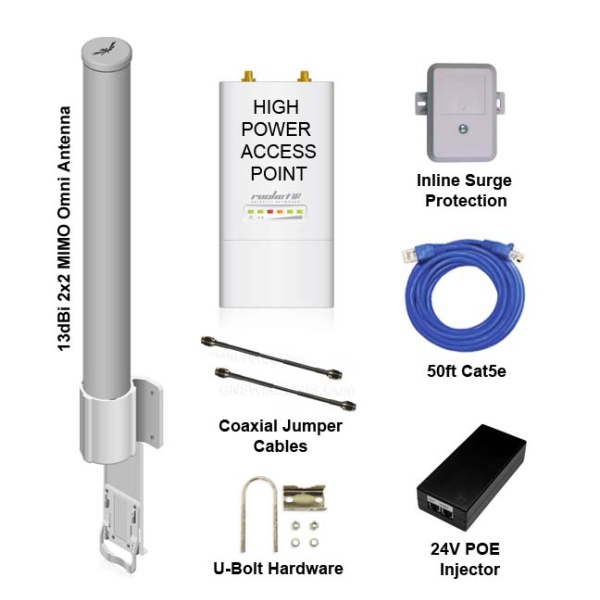

What’s included in this 2.4GHz WiFi hotspot equipment package:
1x Outdoor, Weatherproof, 802.11N, 800mW, 150Mbps Access Point
1x 13dBi, 2.4GHz 2×2 MIMO Omni-Directional Antenna (RPSMA)
1x Inline Ethernet Surge Protector
2x RPSMAM to RPSMAM Coaxial Pigtail Cable
1x POE/PS (24V Power-over-Ethernet)
1x Pole Mount Hardware for 1-2.5″ OD mast
1x 50ft. Cat5e Ethernet cable
The GNS-1449-1WN is customized for owners who are looking to add Wi-Fi to their location, where speed, distance and reliability are equally important. This package can be the basis of your Wireless Hotspot if you plan to expand the Wireless Network in the future, either by extending the range, or by increasing the # of available clients connected to the network. External Signal LED’s will assist with alignment and troubleshooting procedures. Maximum distance Access Point can be placed away from your router is 250ft. (Shielded cat5e is recommended). This 2.4 GHz WiFi hotspot package includes a 1 year warranty, which includes lifetime technical support.
This package was upgraded to a 2×2 MIMO omni antenna, and includes a 13dBi 2×2 MIMO Omni Directional Antenna.
This would be used if you are broadcasting from a central location, and need 360 degrees of coverage.
Antenna height, assuming your area is flat, should be about 15-20ft. Typically, higher than that, and you can overshoot your guests.
The range you get from this package will depend on your clients. If this is a for an RV park, than we do not recommend more than 250ft. in any direction. The signal will have to pass through the metal trailers, and other obstructions.
If this is for some other type of outdoor installation, then the 500ft. in any direction is more accurate, as long as you have good line of sight, no trees, etc.
With regards to installation, this will include everything you need to connect to an existing pipe or mast, on your roof, with 50ft. of cat5 Ethernet cable to connect indoors and plug into your existing router.
Pre-configuration is included any no additional cost.
