Siklu 10 Gbps Point to Point Backhaul, 10 Gigabit Full Duplex Wireless Bridge, AES, 80 GHz, 1 Mile | Complete LINK

$17,200.00

Part #: GNS-EH8010FX-1FKIT

10 Gigabit Point to Point Wireless Backhaul, 80 GHz, Complete Link

Brand:
Availability: In Stock
MFG Part #: EH-8010FX
Categories: , ,
Tags: ,

Description

Bundle and Save!  This is a complete Siklu 10 Gbps Point to Point Wireless Bridge with AES included.

Siklu EtherHaul-8010FX Complete-Link Wireless Backhaul Kit has 10 Gigabit Full Duplex, uses E-Band and the 80 GHz frequency, and comes with 1ft. antennas, mounting hardware and POE.  SFP Modules are not included and can be added to the wireless backhaul kit.  We stock both the MMF 850nm LC connector and SMF 1310nm LC connector.  Please contact GNS Wireless directly for more information at (516) 214-0321.

Clear, unobstructed line of sight is highly recommended with distance no more than 1 mile for full throughput.  The Siklu EtherHaul-8010FX series radios make it very easy to establish a high capacity wireless link to install and maintain.  Typical applications for the Etherhaul Gigabit link include fiber replacement, point to point wireless bridge, backup, and gigabit broadband.

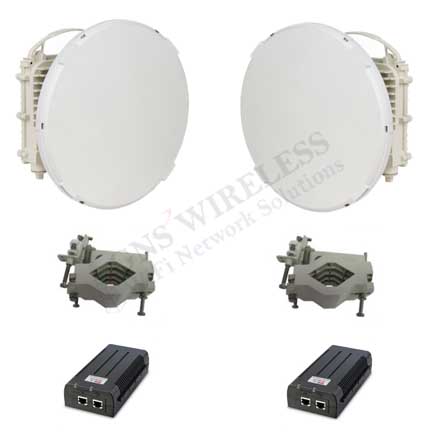

EH-8010FX-1F-KIT Includes the following:
• (1x) Etherhaul High Band Base Radio
• (1x) Etherhaul Low Band Base Radio
• (2x) Mounting Bracket

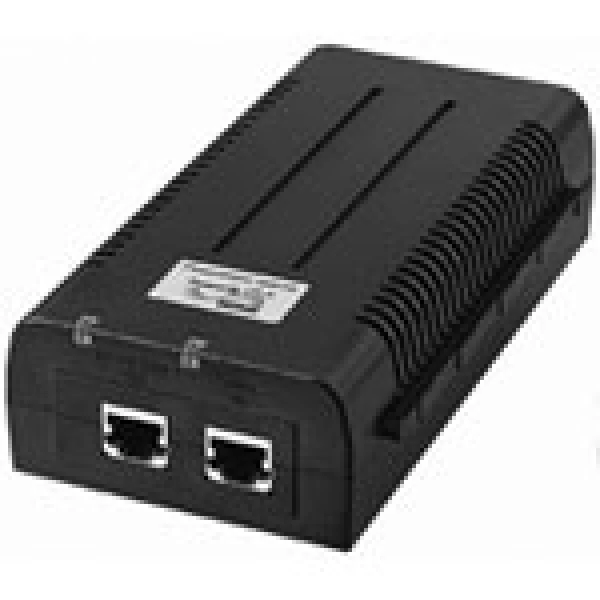

• (2x) 60W POE Injector
• (2x) 1ft. Dish Antenna

Maximum distance of 1 mile is highly recommended for maximum speed.  If your two locations are more than 1 mile, but no more than 2 miles apart, we recommend upgrading the antenna to a 2ft. dish.  Contact us for more information or to upgrade the antenna.

Security used on these radios is AES (pre-installed), with VLAN encapsulation and QOS.

Carrier Grade Features

High throughput and low latency combine to deliver fiber compatible performance. The EH-8010FX incorporates QoS-aware adaptive bandwidth coding and modulation for high availability and easy integration with Ethernet switches or MPLS routers in highly resilient topologies.

The EH-8010FX is designed to connect into existing networks with its support for both copper and fiber 10G interfaces allowing service providers and enterprises to extend their copper or fiber networks.

The EtherHaul-8010FX is designed to connect into existing networks with its support for both copper and fiber 10 Gbps interfaces allowing service providers and enterprises to extend their copper or fiber networks.

What is the maximum distance?

The maximum distance will vary with the expected availability of the link, the antenna and the rain zone. Typical range, with 2ft antenna and targeting 99.95% availability, perfect LOS, is about 2 miles.

Do I need to purchase any accessories?

There is no need to purchase any accessory to run 10Gbps over copper. The 8010FX combo port features an RJ-45 connector, and complies with 802.3an 10GBaseT, allowing to deliver 10Gbps up to 100m of CAT6a or better (shorter ranges are achieved with lower grade copper

Warranty Options

1-year extended warranty (per radio)
Part# STD-EW-1Y-F80
$367.00

3-year extended warranty (per radio)
Part# STD-EW-3Y-F80
$768.00

5-year extended warranty (per radio)
Part# STD-EW-5Y-F80
$1035.00

Additional information

Weight 100.0000 lbs
Availability

In Stock

MFG Part #

EH-8010FX

Downloads

EH-8010FX Datasheet Size: (656.09 KB)
