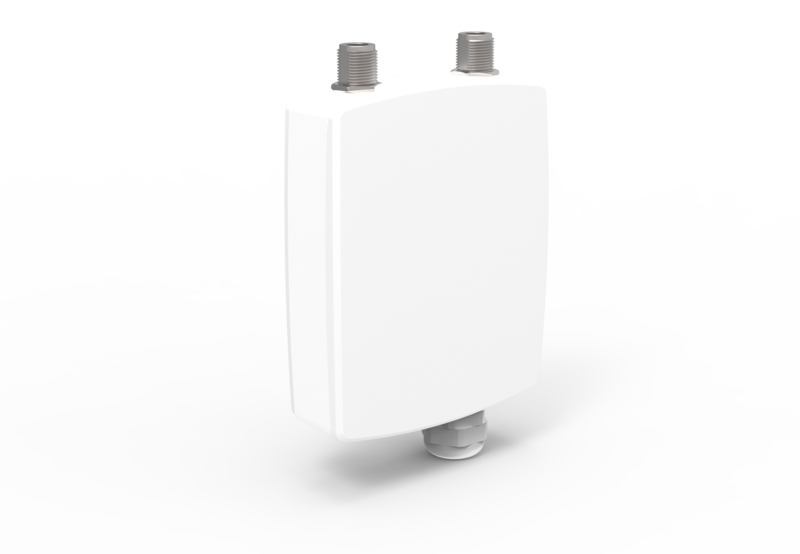

Ligowave DLB-5AC, 5GHz Wireless Access Point, Wireless Bridge, Dual N-Female


Part #: GNS-DLB5AC

5 GHz 802.11AC Outdoor Wireless Access Point, Dual NF

Availability: In Stock
MFG Part #: DLB5AC


Cost-Effective 802.11AC Wireless Access Point with External Antenna Support

Outdoor mid-range PTMP wireless base station, wireless bridge, or wireless access point, operating at the 5 GHz 802.11ac frequency range.  2×2:2 (867 Mbps half-duplex rate). 500+ Mbps data throughput with iPoll and ATPC. Gigabit Ethernet interface. Two female N-connectors for external antennas (not included). IP67. 24V DC PoE injector included.

Equipped with a 750MHz QCA 9563 CPU, a QCA 9882 radio, and 64MB RAM/16MB Flash Memory, the LigoDLB 5ac brings efficiency to the next level.

The state-of-the-art RF design with N connectors for external antennas delivers great output power, improves range, and enables capacity over 256QAM.

+500Mbps of throughput—the result of a powerful hardware platform with an 802.11ac technology-based radio and the iPoll proprietary data transmission protocol.

The LigoDLBac Series is backward-compatible with LigoDLB using iPoll, extending the lifetime of DLB devices and making network expansion and upgrading straightforward and inexpensive.

Additional information

Weight 20.0000 lbs

In Stock

MFG Part #



Datasheet Size: (744.36 KB)
