1.3 Gbps Point-to-Point Ethernet Bridge, 23dBi Integrated Antennas, Gigabit POE, 5.1 to 5.9 GHz, Complete Link

$2,419.00

Part #: GNS-PTP550IL

1.3 Gbps Point-to-Point Ethernet Bridge, 5 GHz

Brand:
Availability: In Stock
MFG Part #: 802.11AC Wave 2
Category:

Description

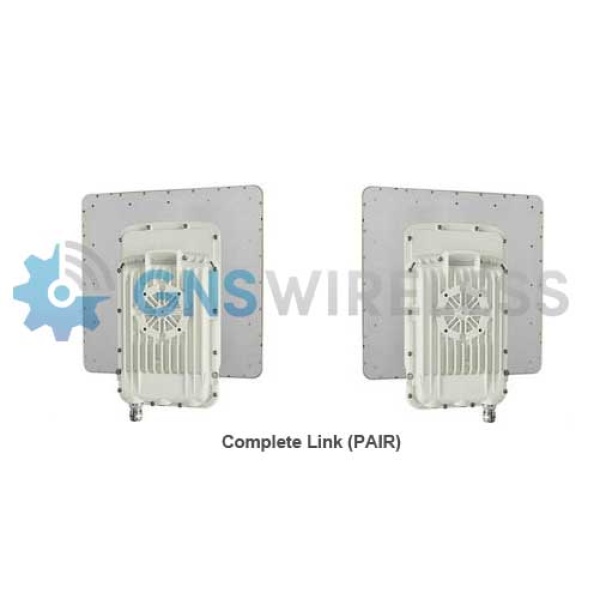

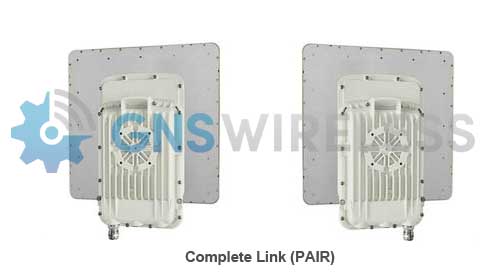

This is a complete gigabit PTP link using 23dBi Integrated antennas from Cambium Networks.  Mounting hardware and POE included.



This wireless bridge uses 23dBi integrated antennas for point-to-point connectivity up to 3 miles, with clear, unobstructed line-of-sight.  Shorter distance is recommended for fastest throughput.  Contact GNS Wireless directly for more information (516) 214-0321.

These radios operate based on the 802.11AC Wave 2 band.  20, 40 and 80 MHz channel widths are supported.  To obtain the high capacity of 1.3 Gbps, you can bond the 80 MHz channels together.  Operating on the single 80 MHz channel width will yeild about 700 Mbps.  Because this link basically has a dual radio design, you can bond the channels together as mentioned above, or you can operate 1 set of channels as the primary link, and configure the other set of channels as your fail over link for redundancy.

These radios use Dynamic Spectrum Optimization meaning they will automatically select the best channel based on external interference.  They will constantly optimise the channel of operation to maximize link reliability and performance.

FEATURES:

  • 5.1 to 5.9 GHz support (based on country)
  • Up to 1.3 Gbps aggregate bandwidth
  • Spectrum Analyzer
  • 27dBm Transmit Power
  • Gigabit Ethernet Port
  • 20/40/80 MHz channel width
  • Channel Bonding Support
  • 802.11AC Wave 2

Additional information

Weight 50.0000 lbs
Availability

In Stock

MFG Part #

802.11AC Wave 2

Downloads

PTP550 Data Sheet Size: (242.81 KB)
