SAVE BIG MONEY WITH OPEN BOX PRODUCTS! These are brand new or gently used products that were returned by our customers. They have been inspected by a GNS Wireless technician and are in full working order, complete with all parts and information. Availability is limited to current stock.
All open box products come with a full 30 day return guarantee.

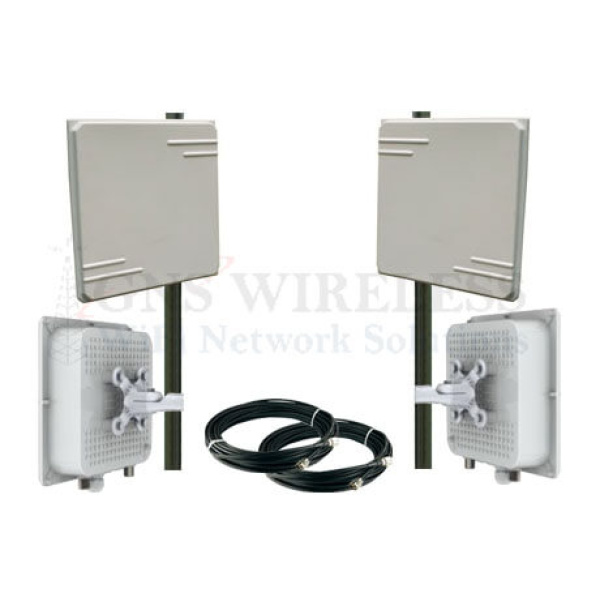

Whats included in this Full Duplex point to point link:
2x Outdoor 802.11N MIMO Radio w/ dual NF Connectors
2x Power over Ethernet Injector (PoE) |10/100
2x Dual Polarized 21dBi MIMO Antenna (5.4-5.9GHz)
4x NM to NM Coaxial Cable (3ft.)
2x Power Supply
2x 50ft. Shielded cat5e Ethernet Cable
2x Pole Mount Hardware for 1-2.5" OD mast
1 Year Warranty including Technical Support
Bridge antennas are pre-configured for "out of the box" installation and operation. External Signal LED's will assist with alignment and troubleshooting procedures. Maximum cat5e cable to be used on each end is 250ft. (Sheilded cat5e is recommended)
5.7-5.8GHz, Full Duplex, (35K Packets per Second (PPS)), 180Mbps aggregate throughput, AES/WPA2 encryption, low latency, POE/PS included, pole mount hardware included, passive POE, auto modulation and auto channel, IP67 Enclosure, integrated spectrum analyzer. This is a complete link to include everything needed to connect 2 locations, up to 1 mile apart, clear-unobstructed line of sight is required. Pre-configured for "out of the box" installation. Technical support included. Complete link.
Connection to Network:
To connect the access point to your network at each location, a single Cat5 Ethernet cable is used. A 50ft. cable is included for each location. (If you need more cable, a maximum length of up to 250ft. can be used) The Cat5 Ethernet cable connects directly from the outdoor access point using a weatherproof grommet, to an indoor POE (Power-over-Ethernet) injector. The POE injector plugs into a standard AC outlet for power, and another Cat5 Ethernet cable connects from the POE injector to your network (Router/PC/Switch etc.)
At the MAIN/SOURCE location, you will typically connect to an open LAN port on the back of your existing router, or switch. At the REMOTE/DESTINATION location, you can connect either directly to a PC if you only have a single computer, or you can connect to an indoor wired/wireless router. This will allow you to run multiple computers over the wireless bridge.
The full duplex point to point wireless bridge kit showcases an array of advanced software mechanisms that provide optimal point-to-point connectivity for high-throughput, long distance links. The MIMO proprietary point-to-point mechanism utilizes techniques such as Selective Repeat ARQ and Dynamic Time Division Duplexing (TDD) to increase link efficiency and greatly decrease the impact that distance has on throughput of the link. The software ingenuity delivered on the full duplex wireless ethernet bridge enables actual TCP throughput of up to 70 Mbps and 35,000 packets-per-second, delivering a solution made for rock solid backhaul capability for both VOIP and data applications.
