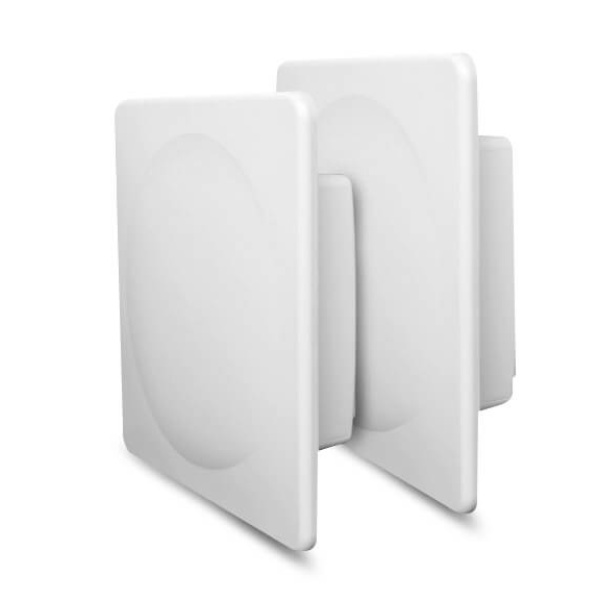

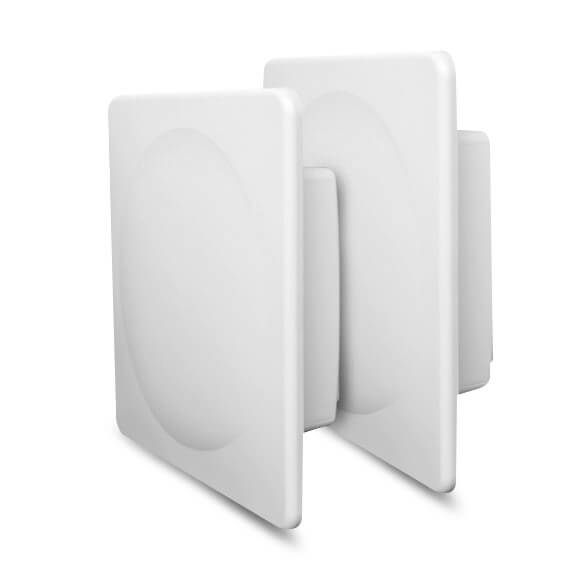

Tsunami QB 10150 Link Lite, 400 Mbps, MIMO 2×2, 22 dBi Panel Antenna | Part# 902-00829


Part #: QB-10150L-LNK

Tsunami QB 10150 Link Lite, 400 Mbps, MIMO 2×2, 22 dBi Panel Antenna

Availability: In Stock
MFG Part #: 902-00829
Categories: , , ,


Tsunami® QB-10100L SeriesHigh Throughput Point-to-Point Wireless Bridge Bundle

Proxim introduces the all new Tsunami Quickbridge® 10100L wireless backhaul solution that delivers over 300 Mbps of throughput

Proxim Wireless is a leader and an early innovator in wireless technology providing high-speed, long-range broadband wireless solutions. Proxim introduces the Tsunami® QB-10100L, a software License controlled version of Tsunami® QB-10100 that delivers up to 400 Mbps data rate in a 40 MHz channel. The Tsunami® QB-10100L benefits from all advantages and features of Tsunami® QB-10100 and it can be field license upgraded to very high throughput mode of over 600Mbps of useable capacity.

Tsunami® QB-10100 can rely on the following features to satisfy carriers, wireless service providers and Government organizations that need very high-speed carrier class wireless backhaul:

– Proxim WORP®, a highly evolved QoS platform tailored to deliver voice, video and data applications

– Proxim ClearConnect[tm], a suite of over 13 different techniques all working together to ensure robust and reliable radio communications in noisy deployments

World Class Performance

– Point-to-Point system that delivers up to 400 Mbps data rate and covers distances up to 18.5 miles (30 km)

– Very low latency of 2 to 3 ms to support voice and video applications over long distances

– Dual IPv4 and IPv6 stack for transparent evolution to tomorrow networks

– Built-in feature rich network protocols for bridging, routing and gateway functionality

Near-Line-of-Sight and Advanced Features

– Near-line-of-sight capable, utilizing OFDM and enhanced 2×2 MIMO techniques for better RF propagation

– Features dual Gigabit Ethernet ports with PoE out to power other devices such as surveillance cameras or additional radios

– Enables packet identification to create unique and sophisticated service rules and tiered service classes with ease

– Compatibility with LACP switches for link aggregation

– Built in spectrum analyzer to help study frequency bands for interference, and select a relatively low interference channel

Carrier-Grade Backhaul

– Implements AES encryption and Radius authentication for the most secure outdoor wireless communications in the unlicensed frequency spectrum

– Utilizes Proxim’s Wireless Outdoor Routing Protocol (WORP®), which prevents snooping, and features highly-secure remote management via SSL/TLS1.2, SSH and SNMPv3

– Features Ethernet ports with pass-through IEEE 1588v2 synchronization and support for 9k Jumbo frame

Cost Effective and Ease of Use for Quick Return on Investment

– Suitable for Service Providers, Enterprises and Governments

– Fully integrates within ProximVision® Advanced Cloud Based Carrier Management System and Controller

– Certified for deployments in the Americas, Europe and Asia

– The most cost-effective, very high performance point-to-point solution from Proxim, enabling any deployment to enjoy a quick return on investment

Additional information

Weight 50.0000 lbs

In Stock

MFG Part #



902-00829 Size: (294.8 KB)
