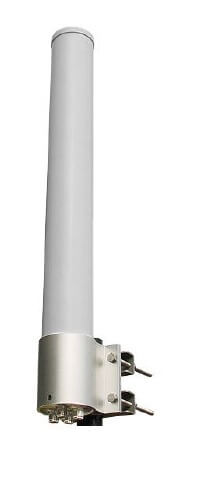

Dual Polarity / Dual Band 4×4 MIMO 11dBi Omni Directional Antenna for 2.4GHz / 5GHz Frequencies
This 11dBi Omni Directional high gain 4×4 MIMO antenna is a professional high gain dual band/dual polarity omnidirectional base station antenna designed and optimized for 2.4 and 5 GHz wireless networks. This dual band antenna is ideally suited for multipoint applications where long range and wide coverage is desired. This 4×4 MIMO antenna has a length of 49″ long, and should be installed outdoors connected to an outdoor grade wireless access point.
Dual Frequency / Dual Polarized
The GNS-1536 omni directional 11dBi antenna supports 2.4 GHz dual polarized access points and a 5 GHz dual polarized access points. The dual frequency bands are placed together in a single radome. Each frequency features separate feeds for both horizontal and vertical polarities, four N-Female connectors total.
This dual polarity antenna allows you to connect to a dual band, dual radio access point such as a access point that has dual 2×2 MIMO radios inside, or a single 4×4 radio inside. Connect the 2.4GHz 2×2 MIMO to the dual NF connectors, and connect the 5GHz 2×2 MIMO to the other remaining NF connectors.
