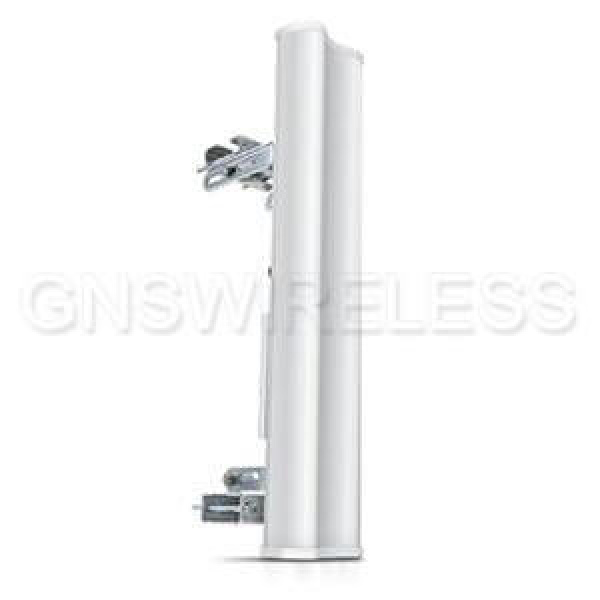

Ubiquiti AM-2G15-120 AirMax Sectorized Antenna. 2×2 MIMO High Gain, with RPSMA connectors.

$229.90

Part #: AM-2G15-120

AM-2G15-120, 120 degree Sector Antenna 2.4GHz MIMO 15dBi

Brand:
Availability: In Stock
MFG Part #: AM-2G15-120
Categories: , ,

Description

Ubiquiti AM-2G15-120 120 Degree 2.4GHz MIMO 15dBi w/cables.  Access Point not included.

AirMax BaseStation 2.4GHz 15 dBi gain 120 degree dual-polarity Sector Antenna. The Ubiquiti AirMax 2.4GHz 15dBi 120 degree sector antenna includes dual RPSMA connectors on the back of the antenna for direct connection to a Unifi UAP-Outdoor, or RocketM2, or RocketM2 Titanium.  Access Point is not included with this antenna.

Product Includes:
Ubiquiti AirMax 2.4GHz 15dBi 120 Degree Sector Antenna
Antenna Bracket with the Rocket Fast Mount (for the Airmax BaseStation Model only)
Pole Brackets, bolts, washers and nuts.  Will mount up to a 3 inch diameter pole.
RF Jumper Cables (weatherproof) (RPSMA-Male to RPSMA-Male)

Ubiquiti AM-2G15 World Class Antenna Designs
Patent-pending next-generation technology achieves gain, cross-polarity isolation, and beam-shaping characteristic only of the highest-quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M2 to create a powerful AirMax 2×2 MIMO PtMP BaseStation. Mounting for the Rocket M2 and weatherproof RF jumpers included.

The Rocket M2 and AirMax BaseStation Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.  GNS Wireless has sucessfully installed this combination of Rocket access point with Ubiquiti sector antenna in campgrounds, RV Parks, Marinas, and construction yard Wi-Fi networks.  They work great for outdoor, long range wireless networking.  Please contact us for more information.

AM-2G15 Specifications:
• Frequency Range: 2.3-2.7 GHz
• Gain: 15.0-16.0dBi
• Polarization: Dual Linear
• Cross-pol Isolation: 28dB min
• Max VSWR: 1.5:1
• Hpol Beamwidth (6dB): 123 deg.
• Vpol Beamwidth (6dB): 118 deg.
• Elevation Beamwidth: 9 deg.
• Electrical Downtilt: 4 deg.
• ETSI Specification: EN 302 326 DN2
• Dimensions: 27.6×5.7×3.1in (700x145x93mm) diameter
• Weight: 4.0kg
• Windloading: 160 mph

Additional information

Weight 25.0000 lbs
Availability

In Stock

MFG Part #

AM-2G15-120

Downloads

airMAX_Sector_AM-2G15-120_QSG.pdf Size: (4.01 MB)
