Description

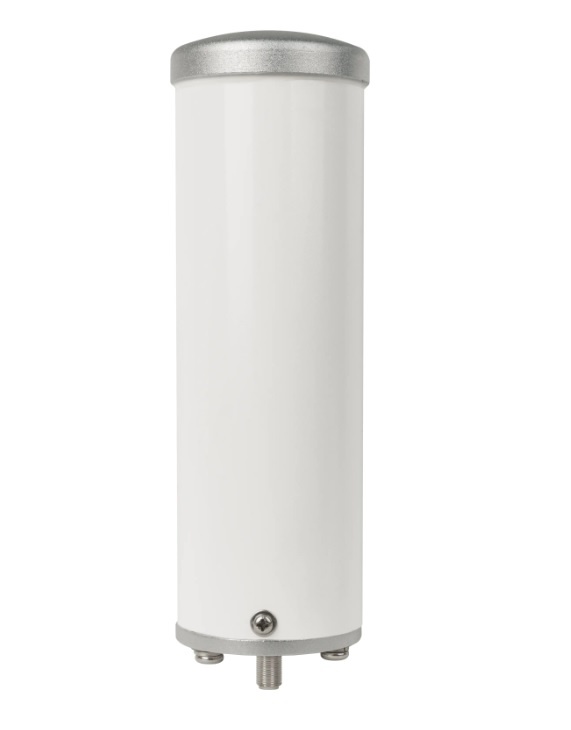

The weBoost Omni Plus Building Antenna (304423) is a 10-inch, 75-ohm omni-directional outdoor cell signal antenna. It features an F-Female connector, captures 360-degree cellular signals, and works with 75-ohm 4G/5G signal booster systems or cellular routers.
- High-gain performance across 698-960 & 1710-2700 MHz cellular frequencies.
- Versatile mounting options with included bracket for mast or wall installation.
- Durable and weather-resistant construction for reliable outdoor use.
- Easy installation with building signal boosters and modems
| FREQUENCY | 698-960 MHz – 2 dB 1710-2700 MHz – 5 dB |
| POLARIZATION | Vertical |
| HORIZONTAL BEAMWIDTH | 360 Deg |
| VERTICAL BEAMWIDTH | 60 Deg |
| VSWR | <1.8 |
| MAXIMUM INPUT POWER | 100W |
| LIGHTNING PROTECTION | DC Ground |
| IMPEDANCE | 75 ohm |
| CONNECTORS | F-Female |
| WEIGHT | 1.9 lb / 0.85 kg |
| RATED WIND VELOCITY | 130 mpg / 210 kph |
| RADOME MATERIAL | 50 |
| COLOR | White |
| OPERATING TEMPATURE | -40 to + 149 °C / -40 to +65 °F |
| RoHS | Compliant |
| DIMENSIONS | 2.5 x 9.8 inch / 63 x 250 mm |
