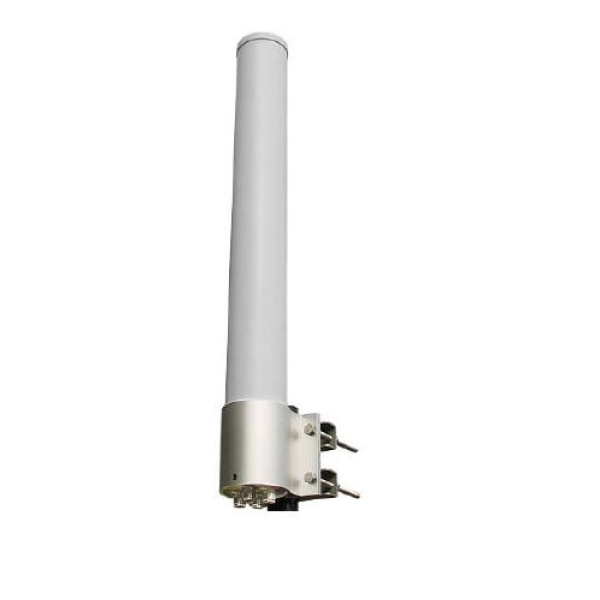

Dual Polarity / Dual Band 4×4 MIMO 9dBi Omni Directional Antenna 2.4GHz / 5GHz

$571.00

Part #: GNS-1534

9dBi 4×4 MIMO Omni Directional Antenna

Brand:
Availability: In Stock
Categories: , , ,

Description

Dual Polarity / Dual Band 4×4 MIMO Omni Directional Antenna 2.4GHz / 5GHz

This 4×4 MIMO 9dBi Omni Directional antenna is a professional high gain dual band/dual polarity omnidirectional base station antenna designed and optimized for 2.4 and 5 GHz frequencies. This Dual Band 4×4 MIMO 9dBi Omni Directional Antenna is ideally suited for multipoint applications where long range and wide coverage is desired.

Dual Frequency / Dual Polarized

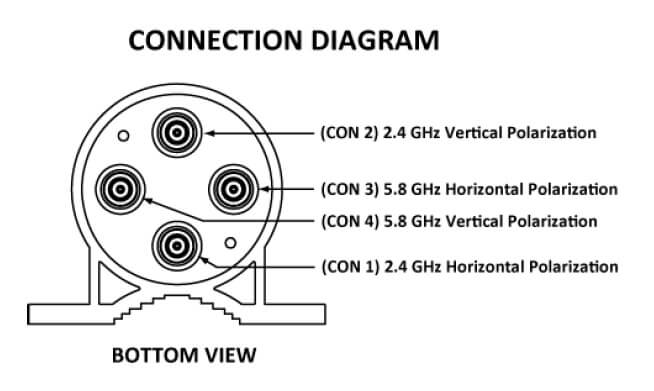

The GNS-1534 omni directional antenna supports 2.4 GHz dual polarized access points and a 5 GHz dual polarized access points.  The dual frequency bands are placed together in a single radome. Each frequency features separate feeds for both horizontal and vertical polarities, four N-Female connectors total.

This antenna allows you to connect to a dual band, dual radio access point such as a access point that has dual 2×2 MIMO radios inside, or a single 4×4 radio inside.  Connect the 2.4 GHz 2×2 MIMO to the dual N-Female connectors, and connect the 5 GHz 2×2 MIMO to the other remaining N-Female connectors.

  • High gain dual band dual polarity outdoor IP67 omni directional antenna designed and optimized for 2.4 and 5 GHz frequencies
  • The omni antenna combines a 2.4/5 GHz horizontal polarized antenna and a 2.4/5 GHz vertical polarized antenna together in a single radome
  • 2 poles for 2.4GHz, 1 pole is horizontal polarization, the other is vertical polarization; 2 poles for 5GHz, 1 pole is horizontal polarization, the other is vertical polarization
  • This simplifies installations since the same antenna can be used for a wide array of outdoor wireless applications where wide coverage is desired.
Model No.
GNS-1534
Frequency MHz
2400-2500 MHz
5150-5850 MHz
Impedance
50Ω
DB gain
9 dBi
Power output
50 W
Polarization
Horizontal and Vertical
VSWR
<= 2
Front / Back Ratio
> 25 dB
3dB Beam Width
E-plan 10(degree)
H-plan 360(degree)
Dimension Diameter x L
 Φ 75 x 1250 mm
Weight
4 kg
Connector
4 x N Female
Temperature
-40 to+85(degree)
Mount
Pole Mount
Directional
N
Radome Material
ABS
Radome Color
White

Additional information

Weight 30.0000 lbs
