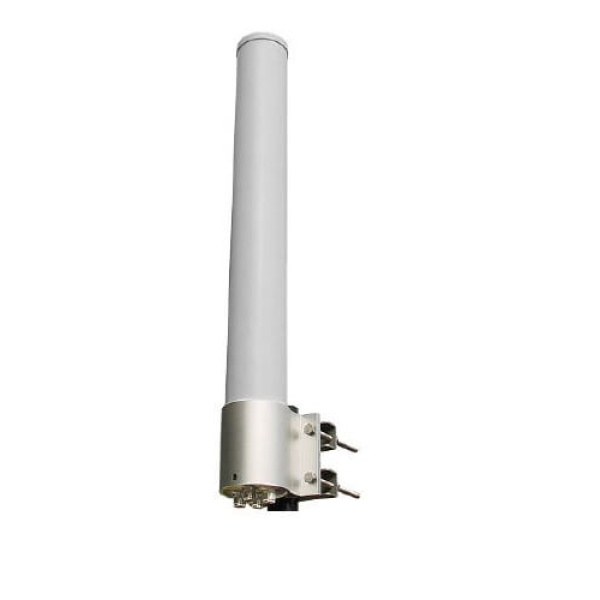

Dual Polarity / Dual Band 4×4 MIMO 6dBi Omni Directional Antenna 2.4GHz / 5GHz

Description

Dual Polarity / Dual Band 4×4 MIMO 6dBi Omni Directional Antenna 2.4GHz / 5GHz

This 4×4 MIMO 6dBi Omni Directional antenna is a professional high gain dual band/dual polarity omnidirectional base station antenna designed and optimized for 2.4 and 5 GHz frequencies. This antenna is ideally suited for multipoint applications where long range and wide coverage is desired.   With the shorter length of 29″ long, this 4×4 MIMO Omni antenna can be installed in a wide variaty of locations.

Dual Frequency / Dual Polarized

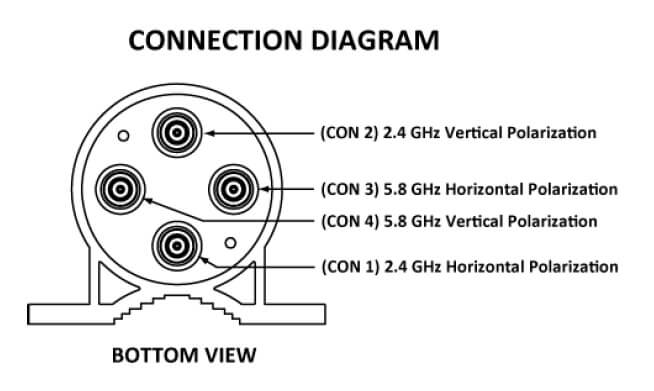

The GNS-1535 6dBi omni-directional antenna supports 2.4 GHz dual polarized access points and a 5 GHz dual polarized access points. The dual frequency bands are placed together in a single radome. Each frequency features separate feeds for both horizontal and vertical polarities, four N-Female connectors total.

This 6dBi omni-directional antenna allows you to connect to a dual band, dual radio access point such as a access point that has dual 2×2 MIMO radios inside, or a single 4×4 radio inside. Connect the 2.4GHz 2×2 MIMO to the dual NF connectors, and connect the 5GHz 2×2 MIMO to the other remaining NF connectors.
