Description

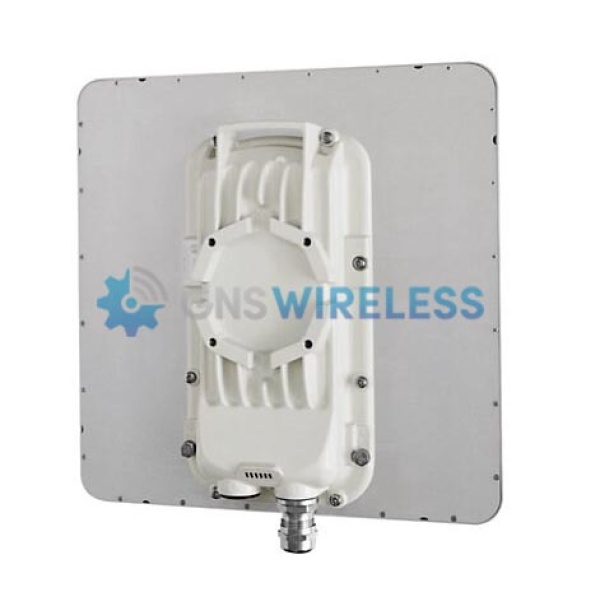

Cambium Networks PMP 450i 5GHz Subscriber Module with 23 dBi Integrated Antenna (C050045C002C)
Rugged, High-Gain Subscriber Module for Long-Range Wireless Connectivity. C050045C002C
The Cambium Networks PMP 450i Subscriber Module (C050045C002C) is purpose-built for delivering high-speed, long-distance wireless broadband in harsh outdoor environments. With a powerful 23 dBi integrated antenna, wide frequency support, and advanced interference mitigation, this subscriber module is the ideal solution for wireless ISPs, municipalities, utility networks, and enterprise deployments.
If you’re looking to connect rural homes, remote facilities, or critical infrastructure, this PMP 450i SM delivers carrier-grade reliability and performance—backed by Cambium’s proven technology.
✅ Key Benefits
-
Long-Range Performance – Integrated 23 dBi antenna with narrow beamwidth for precise, long-distance connectivity.
-
Wide Frequency Support – Operates in the 4900–5925 MHz range for flexible deployment options.
-
Built for the Outdoors – Housed in a rugged, IP66/IP67-rated enclosure for extreme weather durability.
-
Powerful Processing – Upgraded hardware architecture delivers increased throughput and responsiveness.
-
Low Latency Communication – Ideal for VoIP, surveillance, and industrial applications with 3–5 ms typical latency.
-
Plug & Play Integration – Easily managed with Cambium’s cnMaestro™ cloud or on-premises controller.
-
Secure Connections – AES-128 encryption with support for 256-bit ensures secure data transmission.
🔧 Technical Specifications
| Feature | Details |
|---|---|
| Part Number | C050045C002C |
| Frequency Range | 4900–5925 MHz |
| Channel Bandwidths | 5 / 7 / 10 / 15 / 20 / 30 / 40 MHz |
| Antenna Type | Integrated Panel Antenna |
| Antenna Gain | 23 dBi |
| Beamwidth | 10° (azimuth and elevation) |
| Max Transmit Power | +28 dBm |
| Max Throughput | Up to 300 Mbps |
| Latency | 3–5 ms typical |
| Encryption | AES 128-bit (optional 256-bit) |
| Enclosure Rating | IP66 / IP67 Outdoor Rated |
| Dimensions | 12″ x 12″ x 2.5″ (H x W x D) |
| Weight | 5.5 lbs |
| Power Supply | 48–59V DC (802.3at compatible) |
| Power Consumption | 15W typical, 18W max |
| Operating Temperature | -40°F to +140°F (-40°C to +60°C) |
| Management | cnMaestro™ Cloud / On-Premises |
📌 Ideal Use Cases
-
Rural Wireless ISPs – Extend broadband coverage to remote areas with high-gain, long-distance modules.
-
Utility & Energy Networks – Support smart grid applications, SCADA, and telemetry with rugged connectivity.
-
Public Safety – Connect cameras, communication gear, and sensors in municipal or emergency networks.
-
Agriculture & Mining – Enable private network access in expansive, tough terrain environments.
-
Enterprise Connectivity – Bridge campuses or remote offices with minimal infrastructure investment.
🛠️ Deployment Tips
-
Conduct a Site Survey – Ensure line-of-sight to the access point and identify any sources of RF interference.
-
Mount Securely – Install at appropriate elevation and aim precisely due to the narrow 10° beamwidth.
-
Power & Connect – Use 802.3at-compatible PoE injector or power supply.
-
Configure via cnMaestro™ – Enable full visibility and remote management of your Cambium devices.
-
Test and Optimize – Confirm throughput and latency, then lock in alignment for peak performance.
📞 Ready to Connect the Unreachable?
Buy the Cambium PMP 450i Subscriber Module (C050045C002C) today from GNS Wireless—your trusted source for outdoor wireless networking solutions. Our team offers expert advice, fast shipping, and competitive pricing to get your deployment up and running.
👉 Click here to order from GNS Wireless or call 877-209-5152 for a custom quote and project support.
