Description

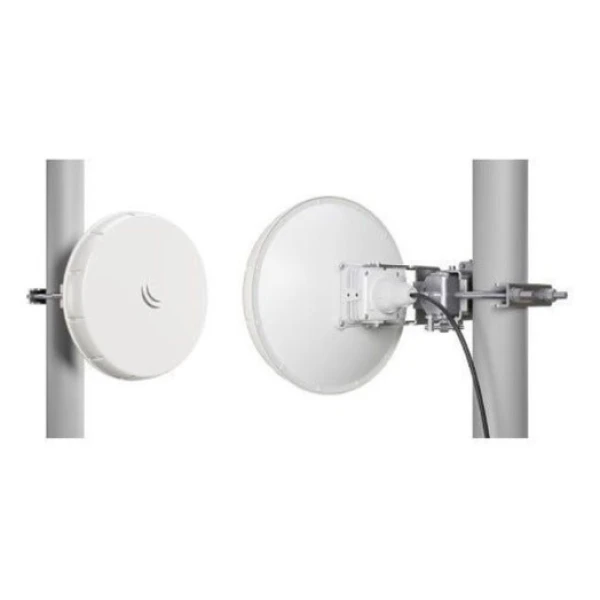

60 GHz, Low Latency, High Throughput PTP Wireless Backhaul (1/2 Mile)

2+ Gbps High Throughput backhaul solution in an easy to setup, small form factor PTP WLAN Bridge

The most compact point to point wireless bridge for interference free communication up to 1/2 mile is now available!

Connecting 2 locations in a busy Wi-Fi area has never been easier.  If you have experienced problems connecting 2 networks, like slow speed, latency, interference, packet loss, choppy video signal, or slow file transfers, this link will fix that issue.  These radios operate at 60 GHz which avoids all 5 GHz, and 2.4 GHz interference.  The 2 Gbps wireless speed will be as if you have your 2 networks hardwired between each other.  Included POE injector allows you to quickly wire these radios to your network using the included cat6 cable, (25ft.).  The link ships pre-configured so it works out of the box, with external LEDs for troubleshooting and alignment assistance.  The updated design provides for better cold weather installations where snow buildup on the antenna is minimized.

60 GHz radio link means less down time even in areas where saturated 5 GHz and 2.4 GHz wireless networks are present.  For less than optimal 60 GHz environments, the link will automatically fail over to a 5 GHz point to point connection to maintain the integrity of your wireless communication.  We recommend clear, unobstructed line of sight in order to achieve the best possible speed and reliability.

How does it work?

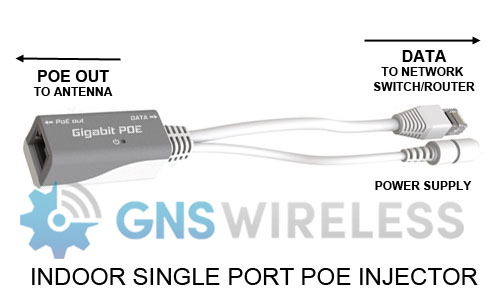

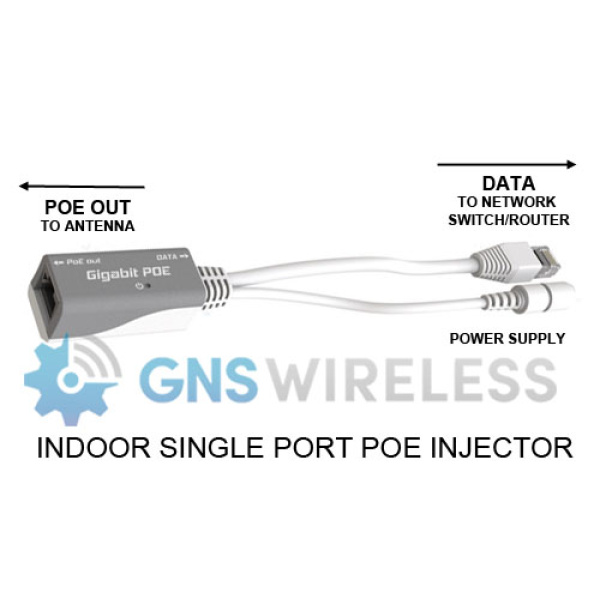

The two included antennas are configured to communicate to each wirelessly.  One antenna set to transmit, and the other configured to receive.  The link operates like a transparent bridge, so basically an invisible Ethernet cable.  Single port POE injectors are included for each side, and they will connect to the network switch, or other LAN device in each location.  Power and data are sent over the Ethernet cable, which is the only connection to the outside antenna.

There are signal LEDs on the outside for alignment assistance.  There is also a web based GUI that you can log into, using the IP addresses for each radio.  This will give you real time readings of the signal, noise and capacity.

Popular Features:

• 60 GHz
• Low-interference
• Highly Secure:  WPA2/AES Encryption Included
• 2+ Gbps Bidirectional Throughput with Low Latency
• POE injector included
• 2160 MHz channel width support at 60 GHz connectivity
• Small form factor (Antennas are 10″ round)
• Pre-Configured for out of the box “plug-n-play” installation
• USA Technical Support included

What’s included in this low latency Gigabit Wireless Ethernet bridge (PAIR):

2x Outdoor 60 GHz 802.11AX Integrated Antenna
2x Gigabit Power over Ethernet Injector (48V PoE)
2x 25ft. Shielded cat6 Ethernet Cable
2x Pole Mount Hardware for 1-2″ OD mast
2x Inline Surge Protectors

This building to building high speed wireless bridge is pre-configured and paired to each other, for “out of the box” installation and operation.  Operating at 60 GHz gives you an interference free wireless communication between any 2 buildings, that are less than 1/4 mile distance, and have clear, unobstructed LOS (Line of Sight).

External Signal LED’s will assist with alignment and troubleshooting procedures. Maximum cat5e cable to be used on each end is 250ft. (Shielded cat5e is recommended).  1 year warranty includes USA technical support from GNS Wireless.

This is the perfect, cost effective wireless bridge to connect any location less than 1/4 mile apart.  Just make sure there are not trees in the way!

CPU                                                     2 cores, 1 GHz
Architecture                                      ARM 64bit
Size of RAM                                      256 MB
Ethernet ports                                 10/100/1000
Max EIRP(dBm)                             55
DC inputs                                         1
DC input type                                  PoE-in (12 – 57 V)
Power nominal voltage                 24 V
Power nominal current                0.38 A
Max power consumption             6 W
PoE-in                                              802.3af/at
Operating system                          RouterOS (License level 3)
Dimensions                                     261 x 166 mm (10″ Round)
Operating temperature                 -40°C to +70°C tested
