5 GHz, 500 Mbps, 802.11AC mid-range wireless bridge | LigoDLB 5-15AC


Part #: LigoDLB 5-15AC

5 GHz, 500 Mbps mid-range wireless bridge, 15dBi Antenna

Availability: In Stock
MFG Part #: DLB5-15AC
Categories: , ,


Outdoor Client Bridge Radio for Point to Point.  5 GHz, 802.11AC

The is an outdoor rated, 5GHz 11ac MIMO radio with integrated 15 dBi directional panel antenna for use in point-to-point and point-to-multipoint wireless IP data applications.

500+ Mbps throughput – a result of powerful hardware platform with 802.11ac technology based radio and a proprietary data transmission protocol (iPoll). Incorporating a QCA 9563 CPU (750 MHz), a QCA 9882 radio and 64 MBytes of RAM and 16 MBytes of ash memory the, LigoDLBac series devices are an ideal solution for capacity demanding applications. State of the art RF design with great output power and sensitivity parameters improve range and capacity over the highest modulation – 256 QAM. The 24V Gigabit Ethernet port (passive PoE) allows utilizing the full capacity of the radio when used in a point-to-point or point-to-multipoint network design. LigoDLBac series devices are backwards compatible with LigoDLB devices using iPoll mode, which helps to expand or upgrade existing networks using the latest technologies over time.

The shape of the enclosure is now smaller, lighter but retains the IP-66 weather protection rating. Smaller packaging reduces freight costs and makes them less obvious. The new design has no metal parts, which makes them lighter and corrosion resistant.

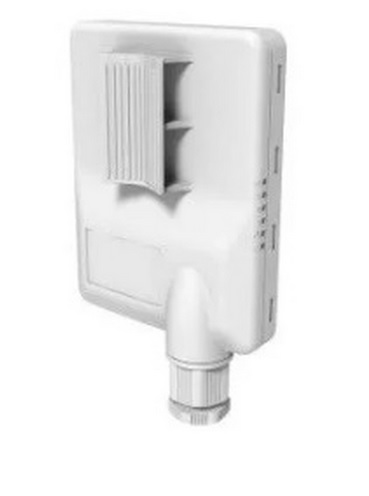

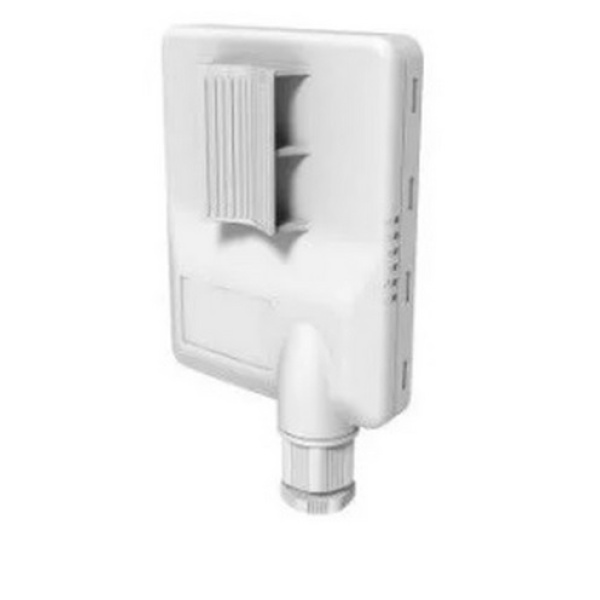

The adjustable mounting bracket is very easy to assemble and install. It consists of two easy to connect parts that allow tilting the device up and down when installing on a pole.

New operating system includes all the essential features for point-to-multipoint networks. User interface is built using HTML 5 technology with responsive design. Among the new features there are IPv6 bridge and router support, SSDP and Bonjour device discovery options, flexible traffic shaping and SSTP client.

Additional information

Weight 15.0000 lbs

In Stock

MFG Part #



DLB5-20AC Spec Sheet Size: (742.7 KB)
