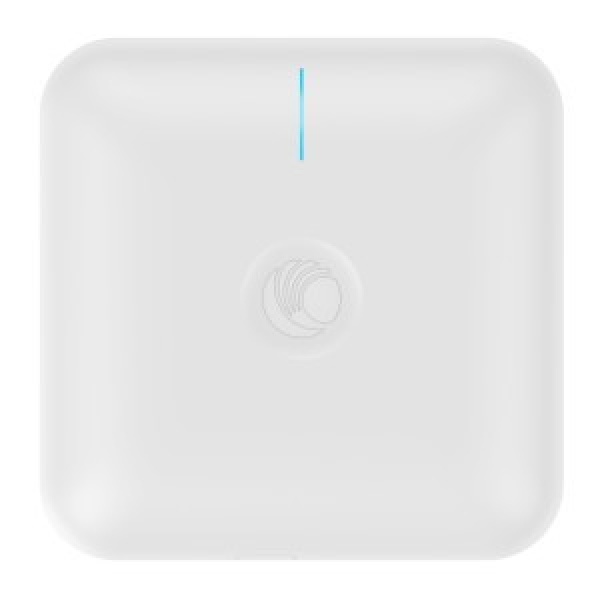

cnPilot Enterprise E600 802.11ac Wave 2 Dual Band Wi-Fi MU-MIMO 4×4 Beamforming Indoor Access Point with PoE, FCC


Part #: PL-E600X00A-USP

E600 802.11AC Gigabit Access Point, Wave 2, 4×4 MIMO

Availability: In Stock
MFG Part #: PL-E600X00A-USP


cnPilot Enterprise E600 802.11ac Wave 2 Dual Band Wi-Fi MU-MIMO 4×4 Beamforming Indoor Access Point with PoE, FCC

The E600 has a maximum transmit power of 28dBm, and is DFS certified meaning it will automatically change channels based on external interference.  This Cambium E600 Gigabit Wireless Access Point supports band steering to force 5 GHz enabled clients to connect to 5 Ghz radio which will increase throughput automatically.

Seamless roaming support for up to 1000 clients without the need of an additional controller.  The 4×4 antenna array increases wi-fi network range for great wireless connectivity indoors.


Make sure that every connection to an access point is successful. When service to a critical resource such as an external Gateway or AAA is down, the E600 can turn off the impacted SSIDs, enabling client devices to redirect to a functional, neighboring access point.


Indoor meshing across multiple E600s, or Indoor/Outdoor meshing across both the Indoor E600 and the Outdoor E500, offers convenient options to wirelessly expand Wi-Fi coverage.


The plenum-rated E600, packs a max transmit power of 28 dB, and is DFS certified to make use of additional reserved 5 GHz DFS channels – offering more flexibility than ever for both coverage and capacity. Throughput management via airtime fairness, increased performance by Automatic Channel Scanning (ACS), and higher client device speeds from band steering ensure your network can adapt to dynamic client behaviors.

The Cambium Networks E600 is an indoor 802.11ac Wave 2 wireless access point that offers high-speed connectivity and advanced management features. Here are the specifications of the Cambium E600 wireless access point:

  1. Wi-Fi Standards: IEEE 802.11a/b/g/n/ac Wave 2

  2. Frequency band: 2.4 GHz and 5 GHz

  3. Maximum data rate: Up to 2.5 Gbps

  4. MIMO Streams: 4×4:4

  5. Antenna: Internal Omni-directional Antenna

  6. Radio chains: 4×4

  7. Ethernet Ports: 2x 1 Gigabit Ethernet (RJ-45)

  8. PoE: 802.3at

  9. Power Supply: 12 V DC, 1.5 A

  10. Operating Temperature: 0°C to +50°C

  11. Dimensions (W x H x D): 220 x 220 x 60 mm

  12. Weight: 1.1 kg

The Cambium E600 wireless access point is designed for high-density indoor environments such as schools, hospitals, and large public venues. It offers advanced management features through the cloud-based Cambium cnMaestro management platform, including zero-touch provisioning, remote monitoring, and troubleshooting. The E600 also supports 802.11ac Wave 2 MU-MIMO technology, which allows multiple devices to transmit and receive data simultaneously, improving network performance and efficiency.

Additional information

Weight 15.0000 lbs

In Stock

MFG Part #



E600 Datasheet Size: (128.67 KB)
