Extending Range and Reliability with GNS Wireless 900 MHz Amplifiers

Industry: Construction & Heavy Equipment

Location: Midwest USA

Products Used: GNS 5 W 900 MHz Amplifier, 6 dBi Omni Antenna, N-Male to N-Female Coax Cable, RP-TNC Adapter Kit

900 MHz amplifier

The Challenge

A local excavation company relied on wireless data communication between a base station and an excavator equipped with GPS and telemetry sensors. The distance between the base and the machine was roughly ½ mile, but due to large dirt piles, dust, and constant movement, the line-of-sight signal was unreliable.

The customer needed a solution that could:

  • Maintain strong, consistent communication through obstacles and heavy dust

  • Support 12 V or 24 V operation from on-site power sources

  • Extend range beyond the current limit, ideally to 1 mile or more

  • Operate in the 900 MHz band, which is proven for long-range, non-line-of-sight transmission

The GNS Solution

After discussing site conditions and equipment specifications, the GNS technical team recommended the GNS-AMP900-5W, a 5-watt 900 MHz amplifier designed for rugged outdoor environments.

The amplifier connects inline between the radio and antenna using low-loss LMR-400 coaxial cable with N-male and N-female connectors. For radios using RP-TNC interfaces, RP-TNC to N-type adapter kits are available directly from GNS Wireless, ensuring plug-and-play compatibility with existing gear.

Because the amplifiers operate at 12 VDC, they can draw power directly from most vehicle or equipment sources. For 24 VDC systems, GNS supplied a DC-DC voltage converter, delivering the proper regulated power to the amplifier without modification.

The Results

After installing the 5 W amplifier and pairing it with a 6 dBi 900 MHz omni-directional antenna on the excavator, the signal strength immediately improved. Even when the excavator moved behind dirt piles, connection to the base station remained stable.

Signal testing showed:

  • Range extended from 0.5 mile to over 1 mile

  • RSSI improved by 12 dB, resulting in fewer packet drops

  • Reliable operation even in areas with moderate obstructions

In follow-up discussions, the customer noted that the system was now “rock solid”, with seamless data transfer between the excavator and base station — even while in motion. The result was increased productivity and zero downtime due to signal loss.

Scalable Power Options for Every Application

GNS Wireless offers a complete line of 900 MHz amplifiers for industrial and agricultural communications:

  • 1 W Amplifier – Ideal for short-range telemetry, remote sensors, or small farm automation networks.

  • 5 W Amplifier – Excellent for mobile equipment like excavators, tractors, or remote pumps within 1–2 miles.

  • 10 W Amplifier – Provides even greater range and signal penetration through trees, terrain, or light structures.

  • 20 W Amplifier – Designed for fixed base stations or long-range point-to-point systems that demand maximum output power.

Each amplifier is FCC-compliant, supports 12 VDC input, and can be paired with a 24 VDC voltage converter supplied by GNS Wireless.

The Takeaway

When reliable communication matters — whether across a construction site, farm, or industrial yard — GNS Wireless 900 MHz amplifiers deliver the range and reliability you need. With rugged construction, simple installation, and custom power options, they’re the perfect upgrade for any long-range wireless system facing line-of-sight challenges.

Ready to extend your range?

Call GNS Wireless at (877) 209-5152 or visit gnswireless.com to explore the full line of 900 MHz amplifiers, antennas, and coaxial accessories.

How to Boost Wi-Fi Internet Coverage for Cabins, RV Parks, and Small Resorts

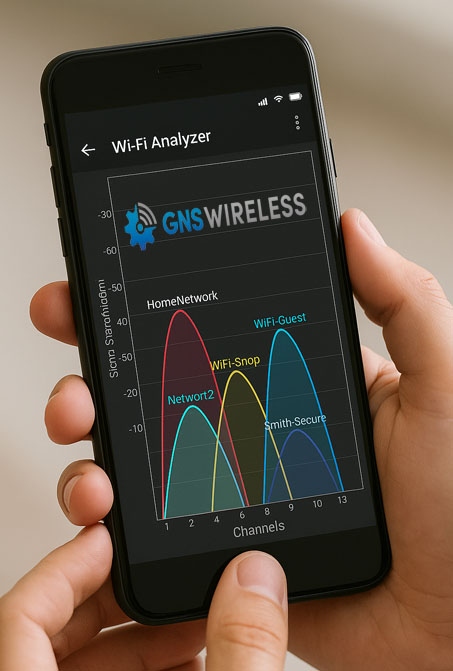

Test your WiFi coverage before final mounting at the marina

If you’re running a campground, RV park, or small resort, reliable Wi-Fi isn’t just a nice perk — it’s a necessity. From smart locks and streaming TVs to guests using multiple devices, your network needs to handle it all without slowing down.

We get questions like this every week:

“I need something to boost my internet signal. Currently the main hub is at the owner’s house but will be moving it to the store. The 13 cabins and pavilion all have internet TV and remote locks. The internet service is 2 Gb fiber. The original system was set up before we had the store and had only 6 cabins. The last 6 cabins do not get steady or very good internet, and when we’re full with RVers, no one else gets internet. The main concern is making sure the cabins get enough internet for the TVs and locks. We’re a small park with a small budget and IT department.”

This is one of the most common challenges we solve at GNS Wireless — extending a strong, consistent internet signal from one central hub to every cabin, pavilion, and RV site on the property.

The Problem: Outgrown Networks and Weak Coverage

Many campgrounds and parks start small. When you add more cabins, RV sites, or a new store, the original Wi-Fi setup just can’t keep up.

Common symptoms include:

  • Far-away cabins lose connection or buffer constantly.

  • Guests complain that streaming doesn’t work when the park is full.

  • Smart locks or thermostats go offline.

  • Your internet speed tests great at the main building — but drops off fast elsewhere.

When you already have fast fiber internet but poor coverage, it’s not your internet provider — it’s your network design.

The Solution: GNS-7664-ELR Outdoor Wireless Access Point

For small parks that need wide, reliable coverage without a complicated setup, the GNS-7664-ELR is the go-to choice.

This weather-sealed, high-power access point is built specifically for campgrounds, cabins, RV parks, and small outdoor facilities that need professional-grade Wi-Fi on a budget.

🔹 Key Benefits

  • Long-Range Coverage: Designed for outdoor use with extended reach across cabins, pavilions, and RV areas.

  • High-Speed Performance: Dual-band Wi-Fi 6 delivers gigabit speeds — perfect for streaming, smart locks, and guest devices.

  • Supports Multiple Users: Handles dozens of simultaneous connections without slowdowns.

  • Easy Integration: Works seamlessly with your existing router or gateway — no complex controller required.

  • Rugged Design: Weatherproof IP67 enclosure built for year-round outdoor operation.

One or two GNS-7664-ELR units can cover a cluster of cabins or an RV loop, depending on line-of-sight and layout. Larger parks can simply add more access points for blanket coverage.

How It Works

  1. Start at Your Internet Source – Mount one GNS-7664-ELR near your main hub or store where the fiber terminates.

  2. Add Additional Access Points – Extend Wi-Fi to cabins or RV sites with one or two additional units strategically placed on poles or buildings.

  3. Connect via Ethernet or Point-to-Point Links – Use outdoor cabling or a GNS wireless bridge kit to connect remote access points back to the main router.

  4. Enjoy Full-Site Wi-Fi – Each cabin and RV site now receives a strong, stable signal for TVs, smart locks, and guest devices.



Why It Works for Small Parks

The GNS-7664-ELR is designed to make high-end Wi-Fi simple and affordable:

  • No software licensing fees.

  • No expensive controllers.

  • Just plug it in, configure your SSID, and go live.

With 2 Gb fiber service, your internet is more than capable — you just need to distribute that bandwidth evenly to all corners of your property. The GNS-7664-ELR does exactly that.

Typical Setup Example

  • Main Internet Hub (Store or Office): Fiber modem + router

  • Outdoor AP #1: GNS-7664-ELR mounted near main office, covering nearby cabins

  • Outdoor AP #2: GNS-7664-ELR mounted mid-property or near pavilion

  • Outdoor AP #3 (Optional): Covers far-end cabins or RV rows

If cabling isn’t possible between access points, use a GNS-1153AC wireless bridge kit, or even faster, GNS-5660 for gigabit connectivity…to extend the network wirelessly without losing performance.

Results You Can Expect

✅ Strong, consistent signal across all cabins

✅ Stable internet TV and smart lock connectivity

✅ Happier guests and fewer IT headaches

✅ No need to upgrade your existing fiber plan

Even on a small budget, this setup provides enterprise-level coverage that scales as your park grows.

Recommended Products

Ready to Fix Your Wi-Fi Once and for All?

If your cabins, pavilions, or RV sites struggle with weak or unreliable internet, the GNS-7664-ELR is the perfect solution — reliable, affordable, and built for outdoor performance.

📞 Call (877) 209-5152 or visit gnswireless.com

Replace Cellular Data with Outdoor Wi-Fi Coverage

Industrial facilities, logistics yards, and warehouse operations depend on tablets, scanners, and spotter trucks to keep daily tasks running smoothly. But when every device relies on a cellular data plan, monthly costs can skyrocket.

More and more companies are choosing to replace cellular data service with private outdoor Wi-Fi networks — owned, managed, and secured in-house. At GNS Wireless, we specialize in designing these large-area networks that cover entire yards, loading zones, and staging areas with reliable, enterprise-grade connectivity.

The Challenge: Reliable Wi-Fi Across a Large Yard

Many facilities have strong indoor Wi-Fi that stops at the warehouse walls. Beyond that, coverage fades — leaving field teams and mobile devices dependent on cellular. The challenge is to extend the corporate network outdoors, across acres of open lot, while maintaining performance inside steel-frame structures and vehicle cabs.

To achieve this, a facility needs:

  • Seamless coverage from the control center to every work zone

  • Low-latency connections for tablets, scanners, and IoT devices

  • Signal penetration through steel-strand or insulated buildings

  • Scalability for additional access points and expansion zones

The GNS Wireless Solution: Point-to-Multipoint (PtMP) Backbone + Remote Outdoor Access Points

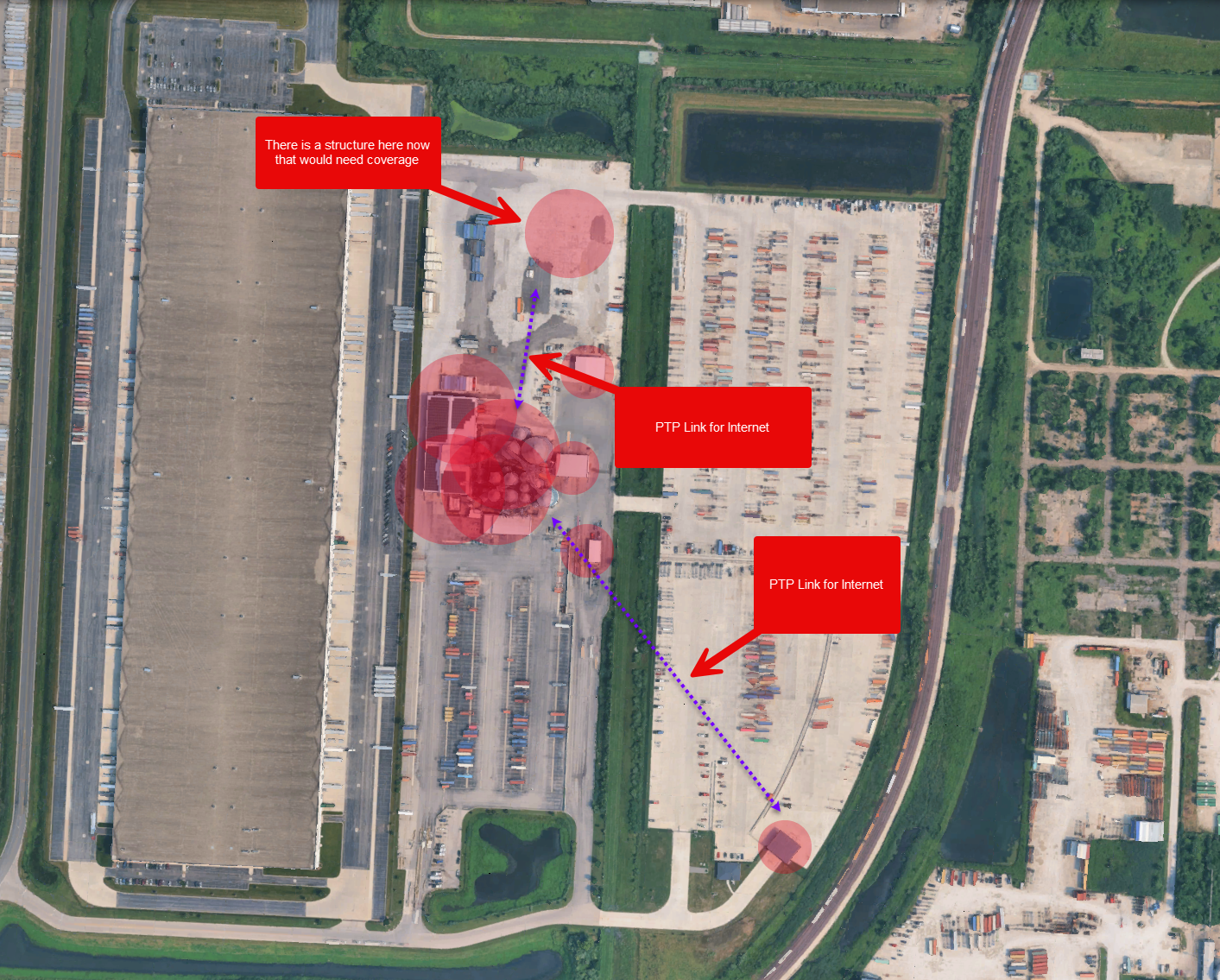

outdoor Wi-Fi for logistics yard

Instead of installing multiple isolated links, the most efficient way to blanket a large yard with Wi-Fi is to use a point-to-multipoint (PtMP) wireless system.

A single PtMP base station located near your network core delivers connectivity to multiple subscriber radios mounted on poles throughout the property. Each subscriber radio feeds a remote outdoor access point, creating localized coverage zones that overlap for seamless roaming.

PtMP Wireless Backbone (5 GHz or 60 GHz)

  • 60 GHz Gigabit Links: Ideal for clean line-of-sight, interference-free backhaul between your MCC or network core and remote AP locations.

  • 5 GHz Industrial Links: Perfect for longer or partially obstructed paths, offering excellent range and reliability even around steel structures or trailers.

Recommended hardware:



Remote Outdoor Access Points

Each PtMP subscriber radio connects to a Wi-Fi 6 outdoor access point mounted nearby — typically on existing light poles or building corners. Together, these APs form a mesh-like coverage pattern across the entire yard.

Key Features:

  • Dual-band Wi-Fi 6 (2.4 GHz + 5 GHz) for modern handhelds and vehicle devices

  • 802.11 k/v/r fast-roaming support for seamless handoff between zones

  • VLAN segmentation for corporate, operations, and guest access

  • IP67-rated housings built to withstand weather and vibration



Why a PtMP Approach Works Best

For sprawling facilities and logistics operations, PtMP architecture offers the best balance of performance, scalability, and cost efficiency.

  1. Centralized Backhaul: One base radio feeds multiple zones, minimizing wiring and simplifying network management.

  2. Reduced Infrastructure Cost: Fewer bridge pairs mean lower equipment and installation costs compared to multiple PtP links.

  3. Seamless Roaming: Devices move freely across access point zones without losing connection.

  4. Scalable Expansion: Adding coverage is as simple as mounting another subscriber and access point.

  5. Lower Latency & Higher Throughput: 60 GHz and 5 GHz technologies deliver gigabit-class performance across large properties.

Coverage Design

  • Base Station: Mounted near the network core or MCC with clear line-of-sight to yard poles.

  • Subscriber Radios: Installed on strategic poles throughout the property, each providing backhaul to one or two outdoor APs.

  • Access Points: Positioned for overlapping coverage across loading docks, drive lanes, and staging areas.

  • Power & Protection: Each pole equipped with PoE power, NEMA enclosure, and surge suppression for reliability.

The result is a unified outdoor network that extends your existing LAN — without trenching, fiber pulls, or recurring cellular fees.

Results: Lower Costs and Higher Control

By transitioning from cellular to a private Wi-Fi infrastructure, organizations typically achieve:

  • Immediate cost savings on monthly data plans

  • Centralized IT management and stronger data security

  • Improved reliability for yard management and logistics software

  • Scalable growth for new lots, poles, or connected devices



Ready to Eliminate Cellular Costs?

If your facility operates across a large outdoor yard or multi-building campus, GNS Wireless can design a custom PtMP Wi-Fi system that keeps every device connected — without paying a carrier every month.

📞 Call (877) 209-5152 or visit gnswireless.com
